Automatic intermittent gear pump AMZ-III [CE]

Automatic intermittent gear pump AMZ-III [CE]

A lightweight and compact pump unit without controller.
Conforming to European Safety Standard. Oil level and pressure switches are standard equipment.

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Model indication method

AMZ-III type(Electric intermittent discharge gear Pump)

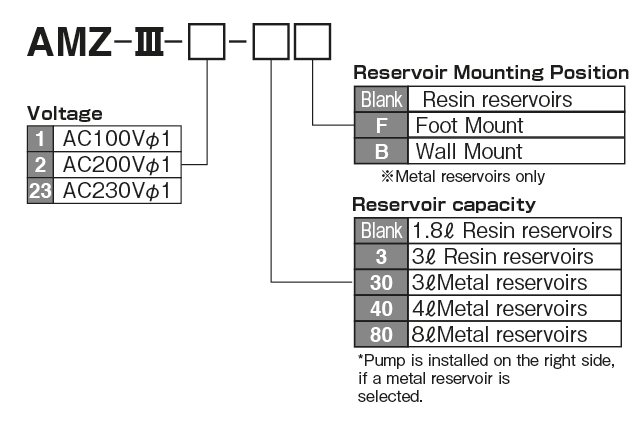

 Model Display method

ModelPart Number
AMZ-III -1 285017
AMZ-III -1-3 285024
AMZ-III -2 285016
AMZ-III -2-3 285023

Low viscosity Specifications

 ModelPart NumberVoltageReservoirOperating viscosity range
1 AMZ-III -100SL-18LP 285224 100V 1.8ℓ 22 ~ 800mm2/S
2 AMZ-III -100SL-18LP 285426 200V 1.8ℓ 22 ~ 800mm2/S
3 AMZ-III -23 285433 230V 1.8ℓ 22 ~ 800mm2/S



Directions for use

● This Pump unit requires a separate control circuit.

● Do not remove the oil strainer. It may cause contamination.

● For the suction filter, target pump or clean it once a year. Please see the adaptation table.

● Since the viscosity changes depending on the oil temperature in summer and winter, be careful to use it within the Operating viscosity range. Please see the viscosity table.

● Do not use special additive oil, water-soluble oil or solvent.

● Regularly inspect the oil in use for contamination, etc. If any are found, immediately flush the Reservoir and make a new oil and Target Pump.

● Please be careful about mistakes such as Voltage.

● Do not overtighten the outlet fitting. Please refer to the tightening torque chart.

● Low viscosity Specifications are also available, so please contact our Global Center.

Specifications

Pump Discharge Volume 90mℓ/min(50Hz)
110mℓ/min(60Hz)
Discharge Pressure 1.5MPa(safety valve set pressure)
Motor Voltage / Current AC100Vφ1/1.5A
AC200Vφ1/0.8A(50Hz)
AC100Vφ1/1.3A
AC200Vφ1/0.7A(60Hz)
AC230Vφ1/0.7A(50Hz)
AC230Vφ1/0.6A(60Hz)
Output 19W(50Hz) 18W(60Hz)
Shading motor
Emergency Detection Oil Level Switch Oil level pressure
Contact type A Contact (NO)ON at low level
Contact capacity 0.5A、AC DC200V/30Wsmaller
Prerssure switch Contact type A Contact (NO)
Working Pressure:1.3MPa ON
Return Pressure:0.9MPa OFF
Contact capacityAC DC250V/2A
Operation Rating The maximum discharge time is less than 1 minute, and the minimum rest time is 3 minutes or more
Operating viscosity range 50〜1300mm²/s(50Hz)
Reservoir Capacity 1.8ℓ、3ℓ(plastic)3ℓ、4ℓ、8ℓ(sheet metal)
Weight 1.8ℓReservoir:2.7kg、3ℓReservoir:3.6kg
External fuse 100V/2.0A    200V/1.0A

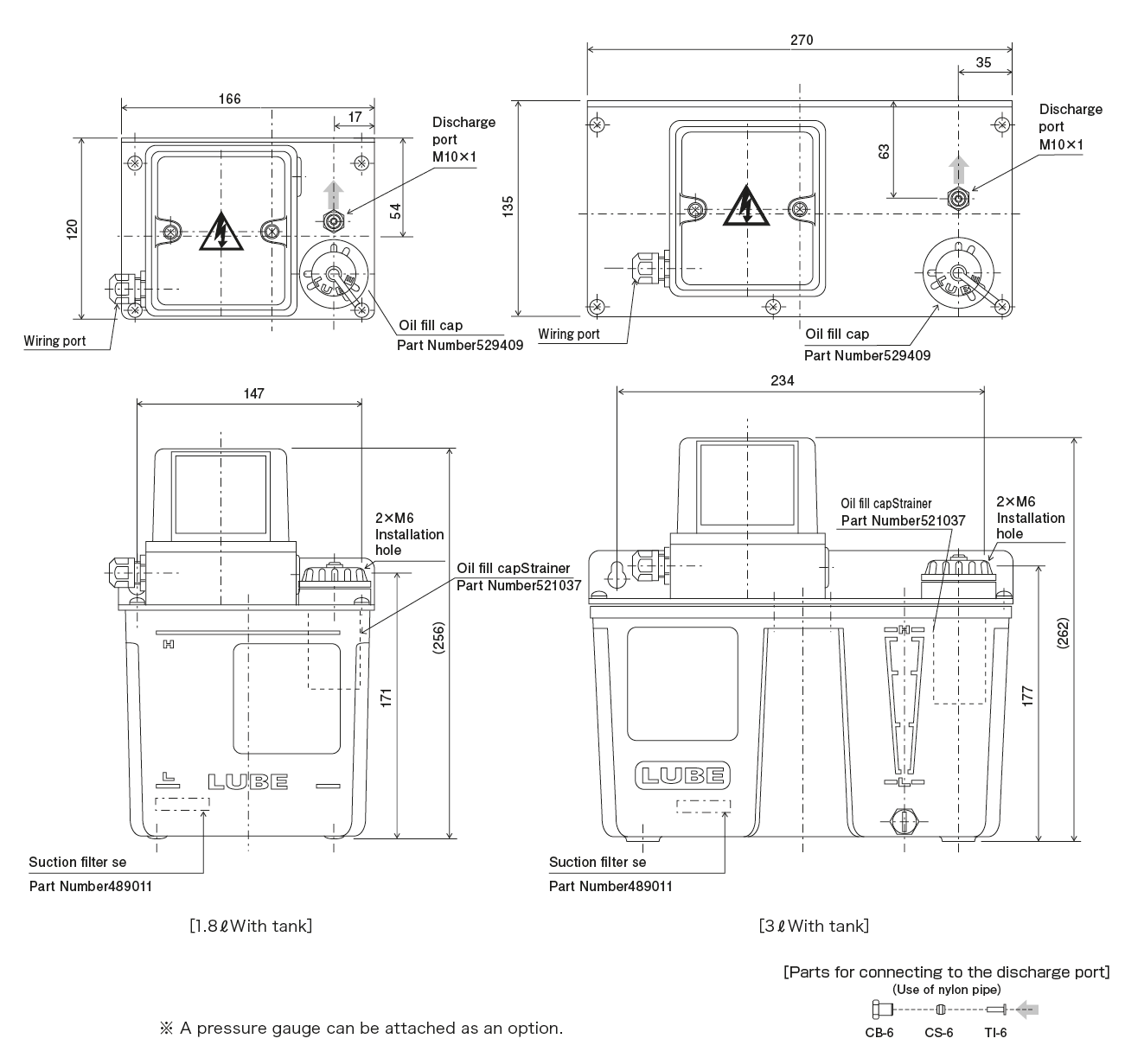

Dimensional Drawing

AMZ-III type(Electric intermittent discharge gear Pump)
 Dimensional Drawing

Warning
Incorrect handling may result in death or damage.

Electric shock
Under certain conditions, there is a possibility of electric shock.

electrical ground
Be sure to connect the ground wire.

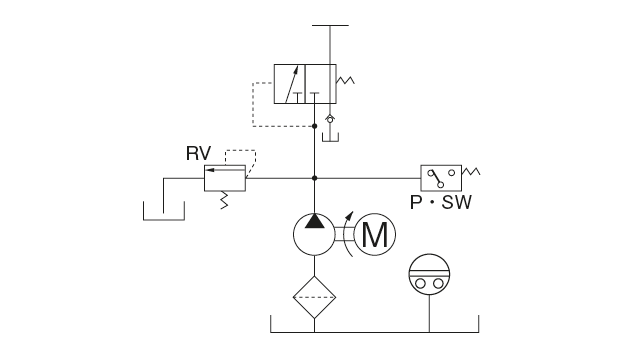

Pump Drawing

AMZ-III type(Electric intermittent discharge gear Pump)

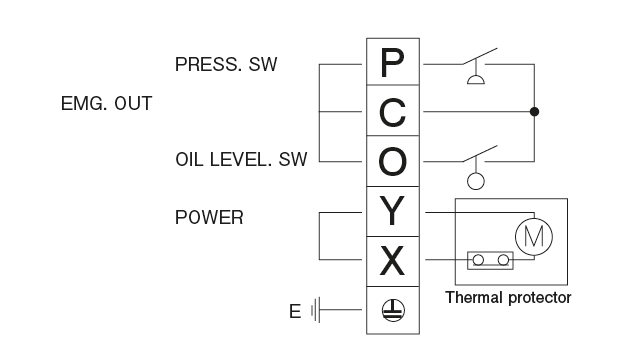

Wiring digram

AMZ-III type(Electric intermittent discharge gear Pump)
 Wiring digram
