LUBE GLOBAL /LUBE CORPORATION

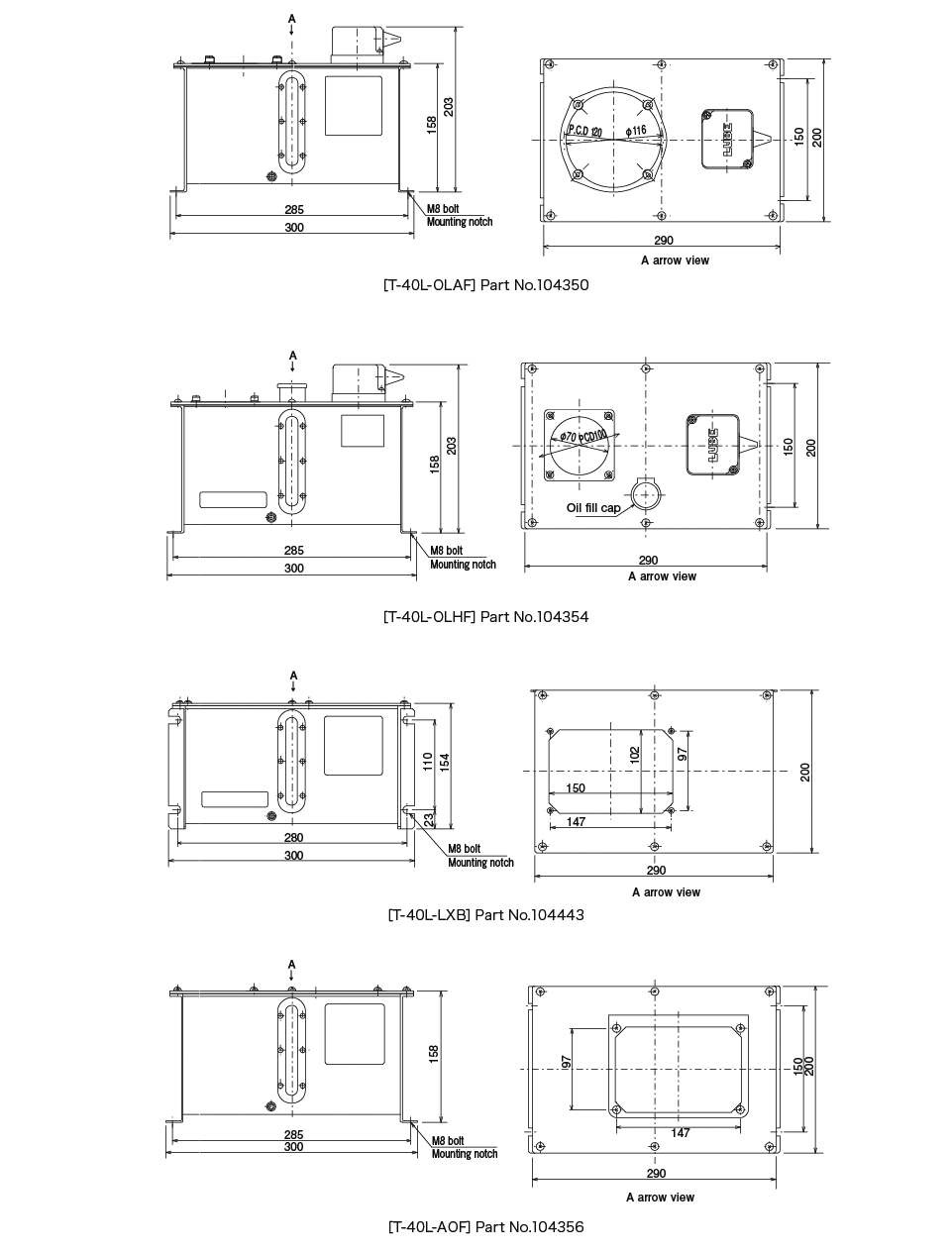

Applicable Pump	Model	Part Number	Pump	Reservoir	Oil level switch
AMZ100S AMO AMR-Ⅲ-150	T-40L-AOF	104356	Right	Foot	—
AMZ100S AMO AMR-Ⅲ-150	T-40L-AOB	104456	Right	Side	—
MMXL-Ⅲ MMX-Ⅱ AMS PM-8S	T-40L-LXF	104343	Left	Foot	—
	T-40L-LXB	104443	Left	Side	—
	T-40L-RXF	104344	Right	Foot	—
	T-40L-RXB	104444	Right	Side	—
AMI-300S AMI-300	T-40L-LHF	104348	Left	Foot	None
	T-40L-LHB	104448	Left	Side	None
	T-40L-RHF	104349	Right	Foot	None
	T-40L-RHB	104449	Right	Side	None
	T-40L-OLHF	104354	Left	Foot	With
	T-40L-OLHB	104454	Left	Side	With
	T-40L-ORHF	104355	Right	Foot	With
	T-40L-ORHB	104455	Right	Side	With
AMI-1000S AMI-1000	T-40L-LKF	104346	Left	Foot	None
	T-40L-LKB	104446	Left	Side	None
	T-40L-RKF	104347	Right	Foot	None
	T-40L-RKB	104447	Right	Side	None
	T-40L-OLKF	104352	Left	Foot	With
	T-40L-OLKB	104452	Left	Side	With
	T-40L-ORKF	104353	Right	Foot	With
	T-40L-ORKB	104453	Right	Side	With
ACM-Ⅱ AM ADM	T-40L-LAF	104341	Left	Foot	None
	T-40L-LAB	104441	Left	Side	None
	T-40L-RAF	104342	Right	Foot	None
	T-40L-RAB	104442	Right	Side	None
	T-40L-OLAF	104350	Left	Foot	With
	T-40L-OLAB	104450	Left	Side	With
	T-40L-ORAF	104351	Right	Foot	With
	T-40L-ORAB	104451	Right	Side	With

● Material ：SPCC　Total Capacity ：6.3ℓ　Effective capacity ：4.2ℓ　Paint Color ：Silver

● Do not use solutions.
● Clean once a year.
● Please refer to the instruction manual for details.

Oil lubrication system
