Oil lubrication system

Reservoirs

Resin reservoirs 3ℓ

Resin reservoirs 3ℓ

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

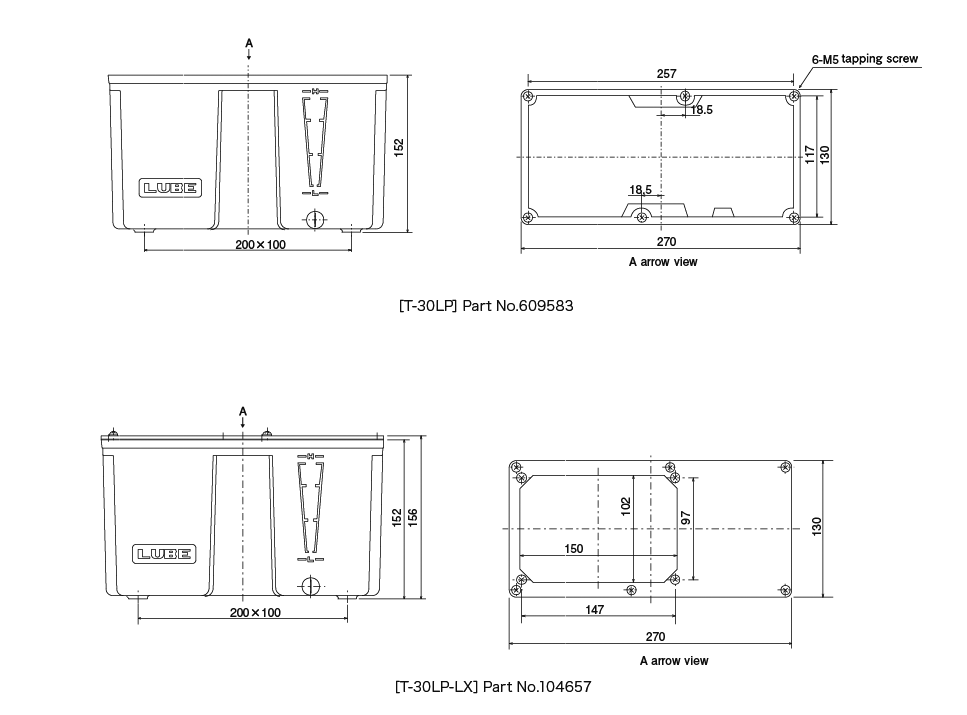

Dimensions

ResinReservoir3ℓDimensions

Pump Circuit Diagram

ModelApplicable PumpPart NumberEffective capacity
T-30LP AMZ100S、AMO、MMXL-Ⅲ、MMX-Ⅱ、AMR-Ⅲ-150、AMS、PM-8S、VBP 609583
T-30LP-LX 104657 Left
T-30LP-RX 104658 Right

● Material: Saturated PolyesterResin Total volume: 4 l Effective Capacity: 3 l

Directions for use

● Do not use solutions.
● Clean once a year.
● Please refer to the instruction manual for details.
