Oil lubrication system

Reservoirs

Resin reservoirs 0.8/1.8ℓ

Resin reservoirs 0.8/1.8ℓ

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

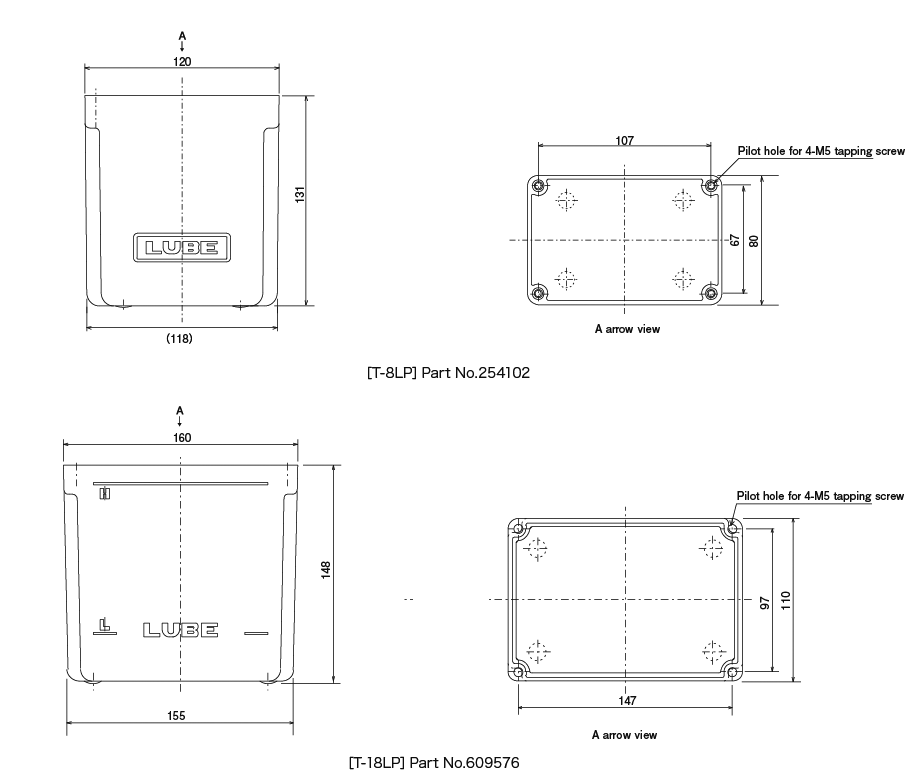

Dimensions

ResinReservoir0.8・1.8ℓDimensions

Pump Circuit Diagram

ModelApplicable PumpPart NumberEffective capacityTotal Capacity
T-8LP L8、MLZ 254102 0.8ℓ 1.0ℓ
T-18LP AMZ-Ⅲ、AMZ100S、AMO、MMXL-Ⅲ、MMX-Ⅱ、EX、AMR-Ⅲ-150、L20、AMS、PM-8S、VBP 609576 1.8ℓ 2.0ℓ

●Material:Saturation PolyesterResin

Directions for use

● Do not use solutions.
● Clean once a year.
● Please refer to the instruction manual for details.
