Accessories

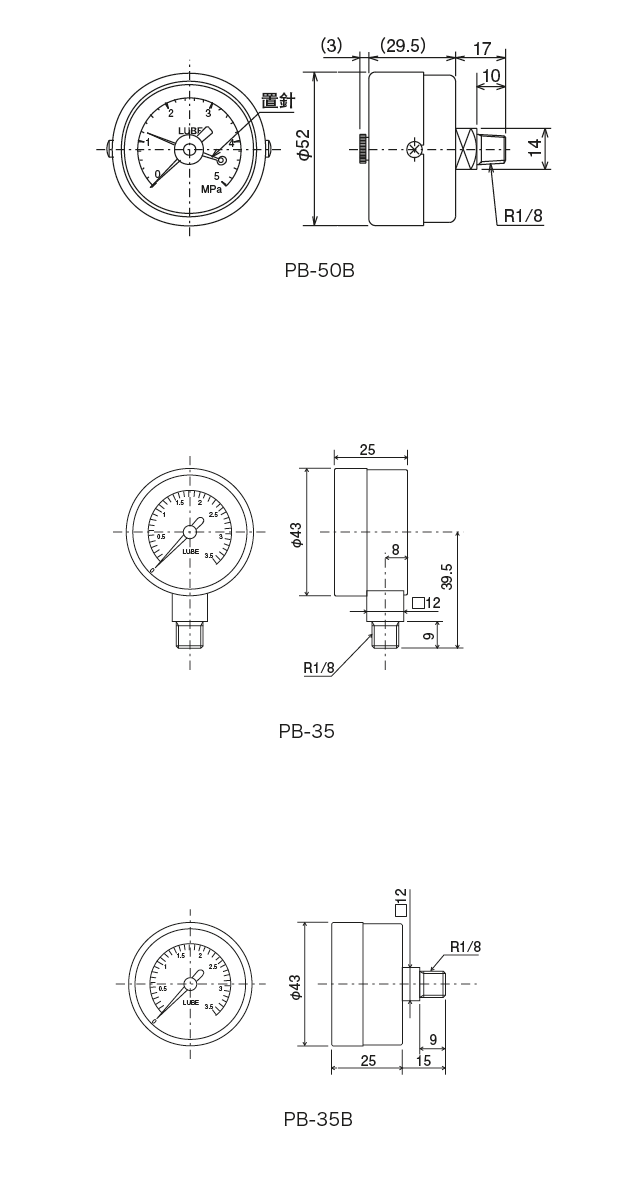

| Model | Part Number | Pressure range（MPa） | Connection | Hand |
|---|---|---|---|---|
| PB-7 | 109166 | 0.7 | R1/8 | With |
| PB-15 | 109167 | 1.5 | ||
| PB-50 | 109161 | 5 | ||
| PB-50B | 109162 | |||
| ※PB-35 | 209136 | 3.5 | R1/8 | Without |
| ※PB-35B | 209137 |
| accuracy | ±3％F.S |
| Temperature range | −5℃〜40℃ |
| Material | Bourdon tube C6872T (10MPa or more C5191T) |
| Outer frame SPCC Iron board |
● Do not apply strong impact such as falling.
● Do not pressurize pressure range or more.

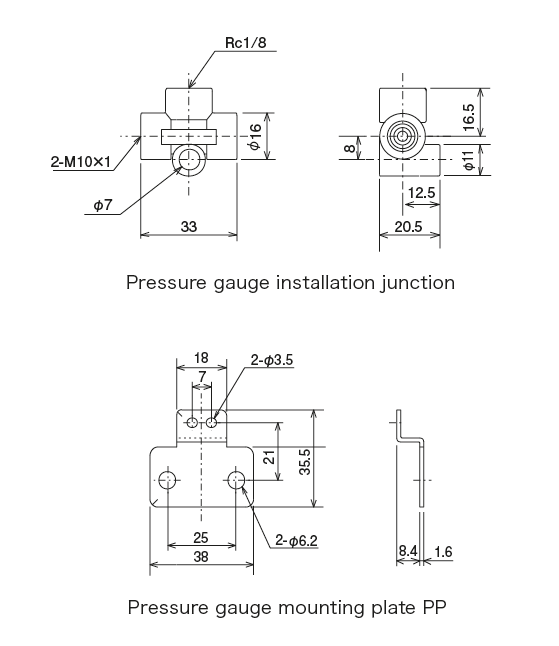

| Model | Part Number |
|---|---|
| PP | 109102 |
※ We can not attach to PB-35, PB-35B.
| Model | Part Number | Specification |
|---|---|---|
| PV-1 | 206481 | Single type for one mouth |
● Material: Zinc die cast (ZDC)
