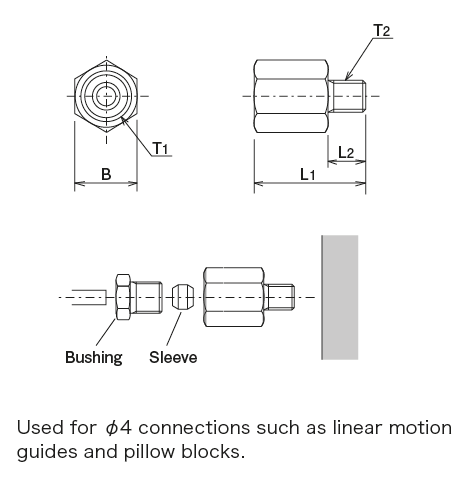

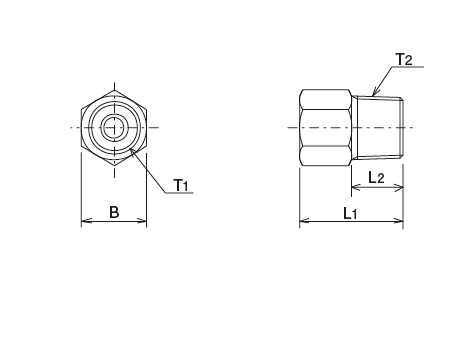

Dimensions

Model	Part Number	Tube outer diameter (φ)	L1	L2	T1	T2	B
SA4-16	106001	4	16	8	M8×1	R1/8	10
SA4-20	106002		20	12
SA4-25	106003		25	17
SA4-30	106004		30	22
SA4-35	106005		35	27
SA6-20	206001	6	20	8	M10×1		12
SA8-28	207001	8	28	10	M14×1.5	R1/4	17

●Material：Brass（C3604

R is male screw, Rc is female screw.

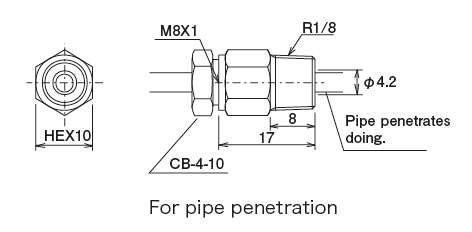

Dimensions

Model	Part Number	Tube outer diameter (φ)
SA-4K	106011	4

●Material：Brass（C3604

CB-4 and CS-4 are required separately.

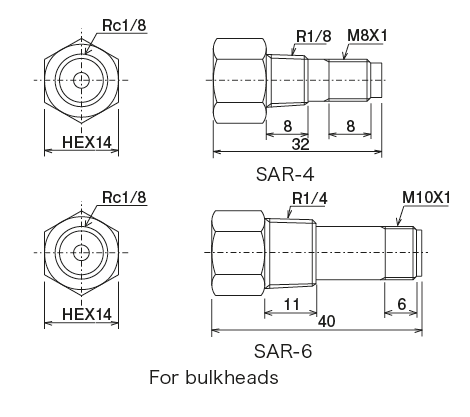

Dimensions

Model	Part Number	Tube outer diameter (φ)
SAR-4	106061	4
SAR-6	206223	6



●Material：Brass（C3604

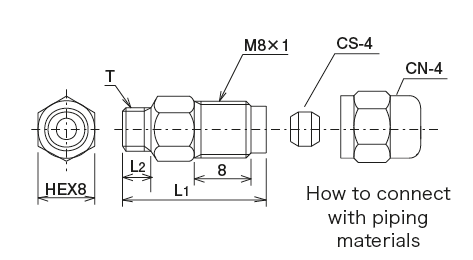

Dimensions

Model	Part Number	Tube outer diameter (φ)	L1	L2	T
SAT-6A	106062	4	20	4	M6×1
SAT-6B	106065		23	7	M6×0.75

●Material：Brass（C3604

※ TI-4 is required when using Nylon Pipe.
※ We can connect to piping in narrow place when we use ECM-5A-6BL, ECMG.

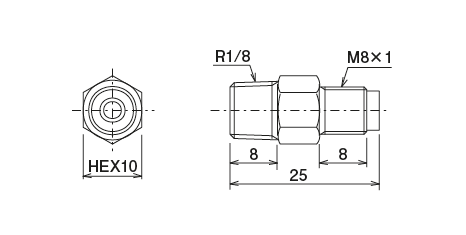

Dimensions

Model	Part Number	Tube outer diameter (φ)
SAT-1R	106081	4

●Material：Brass（C3604)

Dimensions

Model	Part Number	Tube outer diameter (φ)	L1	L2	T1	T2	B
SA4-5A	106082	4	18	6	M8×1	M5×0.8	10
SA4-6A	106084					M6×1
SA4-6B	106085					M6×0.75
SA4-7A	106087					M7×1
SA4-8A	106088					M8×1
SA4-10A	106089					M10×1	12
SA6-6A	106094	6	21	6	M10×1	M6×1
SA4-U	106099	4	22	8	M 8×1	1/4-28UNF	10
SA6-U	106353	6	21	6	M10×1		12

●Material：Brass（C3604）

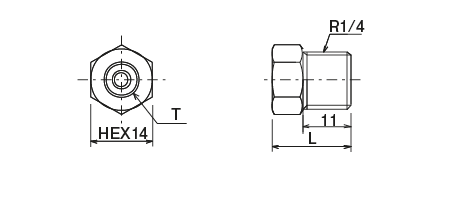

Dimensions

Model	Part Number	Tube outer diameter (φ)	T	L
SA4-2R	106091	4	M8×1	18
SA6-2R	206081	6	M10×1	20

●Material：Brass（C3604）

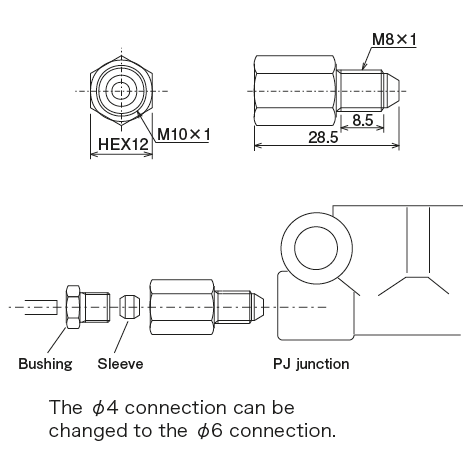

Dimensions

Model	Part Number	Tube outer diameter (φ)
SA6-8T	106095	6

●Material：Brass（C3604）

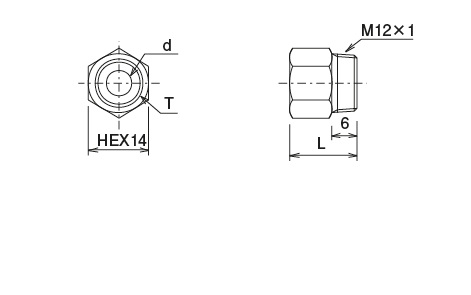

Dimensions

Model	Part Number	Tube outer diameter (φ)	T	d（φ）	L
SA4-12A	206012	4	M8×1	3	14
SA6-12A	206011	6	M10×1	4	16

●Material：Brass（C3604）

※ This adapter is used in combination with a sealing washer.
