LUBE GLOBAL /LUBE CORPORATION

Applicable Pump	Model	Part Number	Pump	Reservoir	Oil level switch
AMO AMR-Ⅲ-150	T-30L-AOF	104326	Right	Foot	—
AMO AMR-Ⅲ-150	T-30L-AOB	104426	Right	Side	—
MMXL-Ⅲ AMS PM-8S	T-30L-LXF	104313	Left	Foot	—
	T-30L-LXB	104413	Left	Side	—
	T-30L-RXF	104314	Right	Foot	—
	T-30L-RXB	104414	Right	Side	—
AMI-300S AMI-300	T-30L-LHF	104318	Left	Foot	None
	T-30L-LHB	104418	Left	Side	None
	T-30L-RHF	104319	Right	Foot	None
	T-30L-RHB	104419	Right	Side	None
	T-30L-OLHF	104324	Left	Foot	With
	T-30L-OLHB	104424	Left	Side	With
	T-30L-ORHF	104325	Right	Foot	With
	T-30L-ORHB	104425	Right	Side	With
AMI-1000S AMI-1000	T-30L-LKF	104316	Left	Foot	None
	T-30L-LKB	104416	Left	Side	None
	T-30L-RKF	104317	Right	Foot	None
	T-30L-RKB	104417	Right	Side	None
	T-30L-OLKF	104322	Left	Foot	With
	T-30L-OLKB	104422	Left	Side	With
	T-30L-ORKF	104323	Right	Foot	With
	T-30L-ORKB	104423	Right	Side	With
	T-30L-LAF	104311	Left	Foot	None
ACM-Ⅱ	T-30L-LAB	104411	Left	Side	None
	T-30L-RAF	104312	Right	Foot	None
	T-30L-RAB	104412	Right	Side	None
	T-30L-OLAF	104320	Left	Foot	With
	T-30L-OLAB	104420	Left	Side	With
	T-30L-ORAF	104321	Right	Foot	With

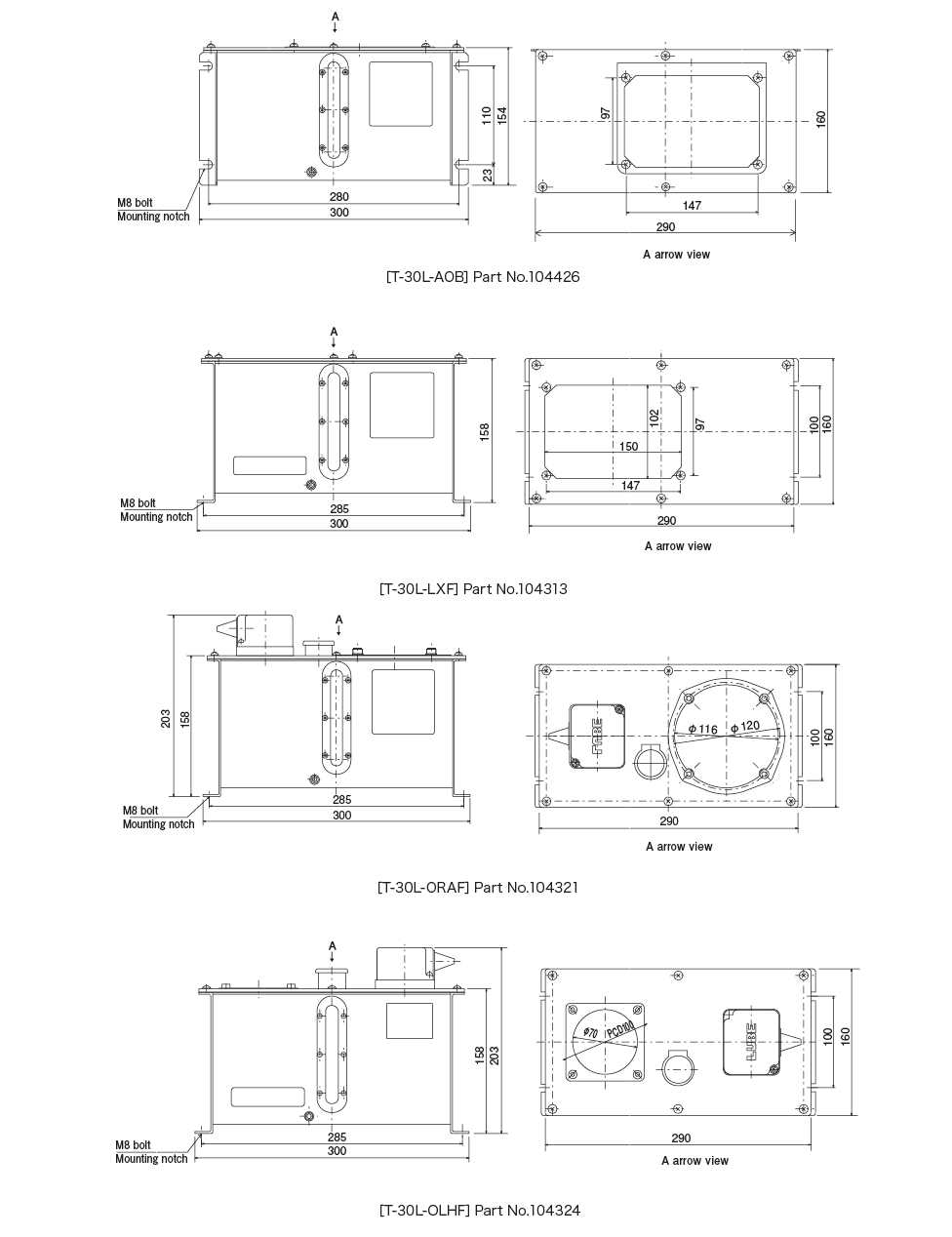

● Material ：SPCC　Total Capacity ：4.9ℓ　Effective capacity ：3.2ℓ　Paint Color ：Silver

● Do not use solutions.
● Clean once a year.
● Please refer to the instruction manual for details.

Oil lubrication system
