Grease Pressure Switch GPL

Grease Pressure Switch GPL

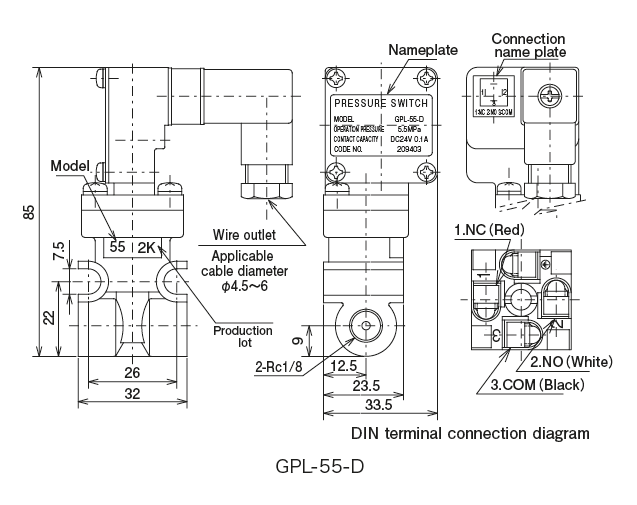

Dimensional Drawing

GPL type(Grease dedicated pressure switch） Dimensional Drawing

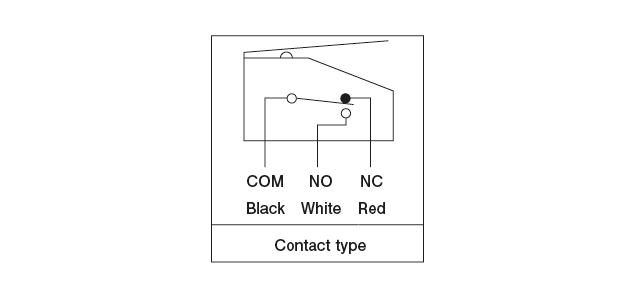

Wiring digram

GPL type(Grease dedicated pressure switch） Wiring digram

Model	Part Number
GPL-30-D	209409
GPL-55-D	209403

Specifications

GPL-30-D
Working Pressure	3.0MPa±0.6MPa
Return Pressure	2.5MPa±0.5MP
最大Working Pressure	10MPa
Micro Switch Specifications	Rated Voltage	DC24V
	Resistive load	0.1A
	Lifespan	200,000 times (at rated load)

GPL-55-D
Working Pressure	5.5MPa±0.4MPa
Micro Switch Specifications	Rated Voltage	DC24V
	Resistive load	0.1A
	Lifespan	200,000 times (at rated load)

※ Manufacturing lot shows last year number of the calendar year, month [A (January)-L (December)].
