Manual Pump for Series Progressive System EGH

Manual Pump for Series Progressive System EGH



  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

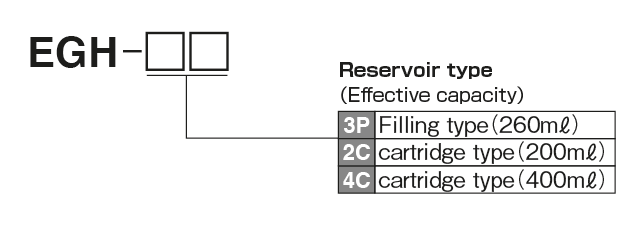

Model indication method

EGH type(Manual Pump Model Display method
ModelPart Number
EGH-2C 103780
EGH-3P 103783
EGH-4C 103782

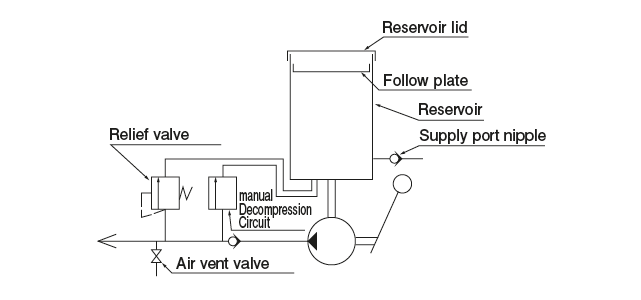

Pump Drawing

EGH type

Directions for use

● Use manufacturer's warranty grease.

● Never use molybdenum disulfide grease.

● Use lithium grease. (If it is other than Lube original grease, please be sure to consult.)

● Be careful not to mix any foreign matter when replenishing grease or replacing cartridges.

● Be careful not to let air enter the pump when replacing the cartridge.

● After greasing or after replacing the cartridge, be sure to open the air vent plug and vent the air inside the pump.

Specifications

EGH-3P Pump Discharge Amount 1mℓ/stroke
Discharge Pressure 10MPa(safety valve set pressure)
Use Consistency Range NLGI No.000、00、0、1(Lithium system)
Guaranteed Grease MP0、FS2、MT1
Reservoir Capacity 260mℓ
Weight 1.4kg
Pressure relief Manual pressure relief lever

EGH-2C
EGH-4C

Pump Discharge Amount 1mℓ/stroke
Discharge Pressure 10MPa(safety valve set pressure)
Use Consistency Range Cartridge Grease No. 000, 00, 0, 1 (Lithium system)
Guaranteed Grease Lube Original Grease
Cartridge Capacity 200mℓ、400mℓCartridge
Weight 1.4kg
Pressure relief Manual pressure relief lever

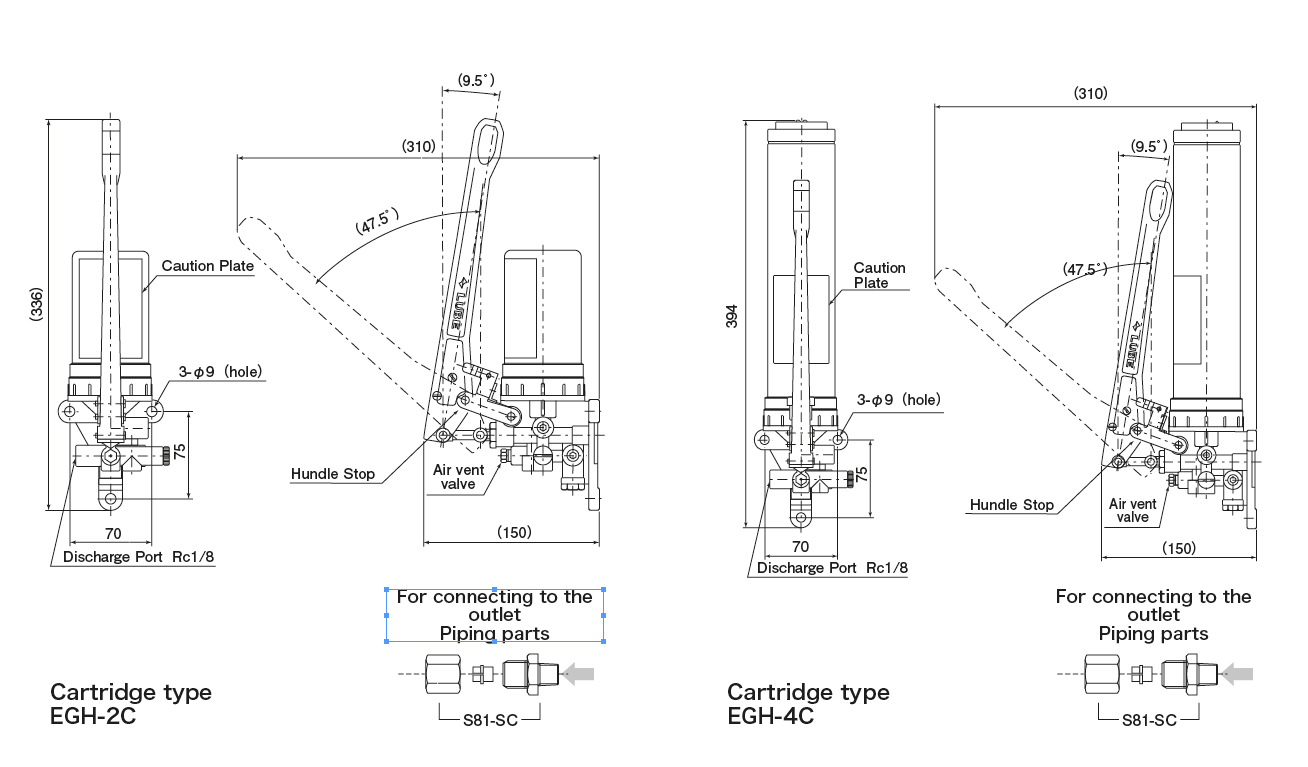

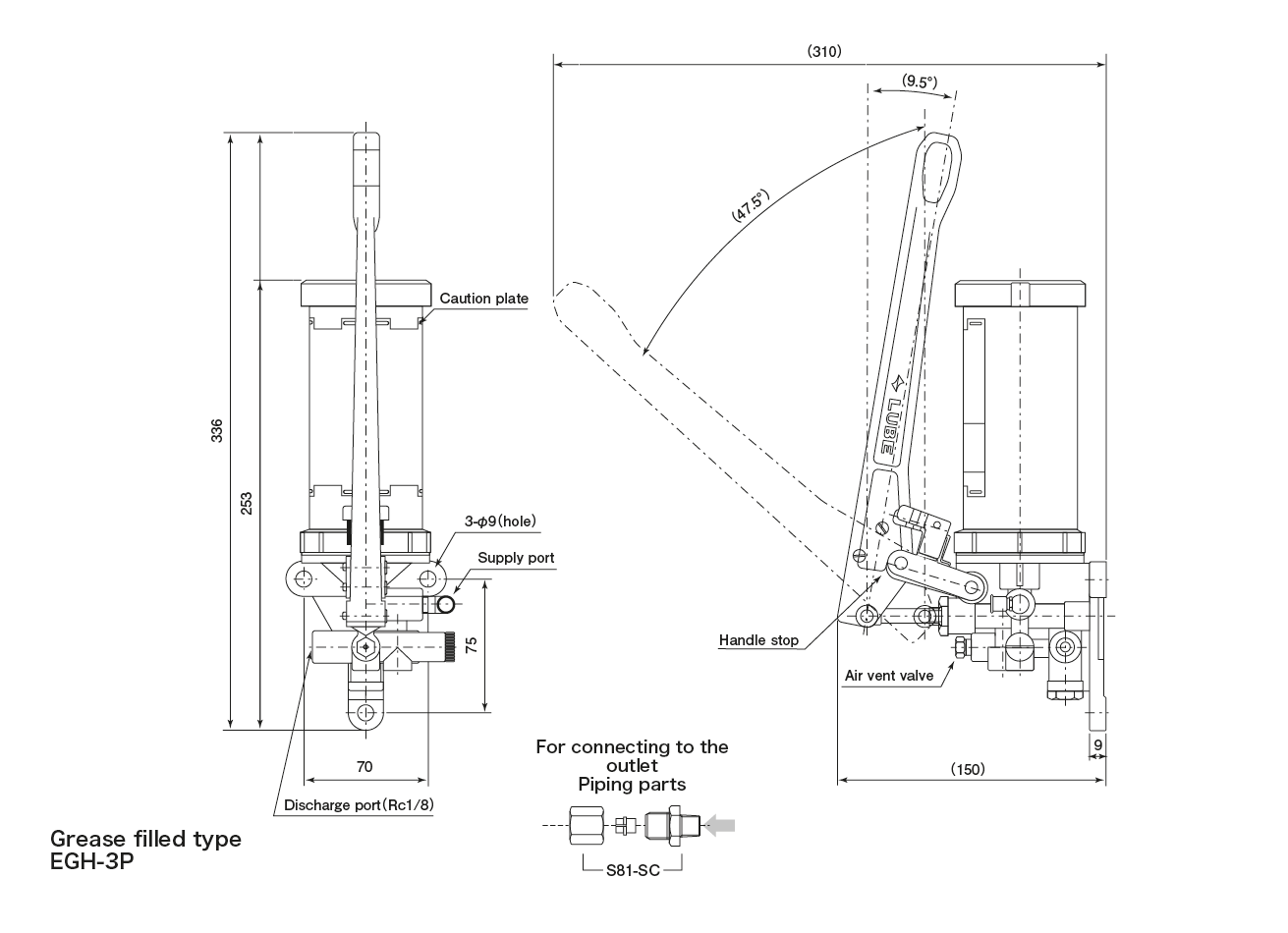

Dimensional Drawing

EGH type(Manual Pump Dimensional Drawing EGH type(Manual Pump Dimensional Drawing
