Compact Pneumatic Grease Pump GAS

Compact Pneumatic Grease Pump GAS



  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Specifications

Pump Discharge Amount 16mℓ/stroke(MAX)
Discharge Pressure Air pressure 1: 7
(Example: Air pressure 0.3MPa × 7 = 2.1MPa)
Operating air Pressure Range 0.3〜0.56MPa(MAX)
Guaranteed Grease Lube Original Grease
Use Consistency Range NLGI No.000、00、0、1(Lithium system)
Grease level Switch Option
Reservoir Capacity 800mℓ
Weight 3.6kg
Pressure relief Built-in automatic pressure release mechanism
ModelPart Number
GAS-8P 102621

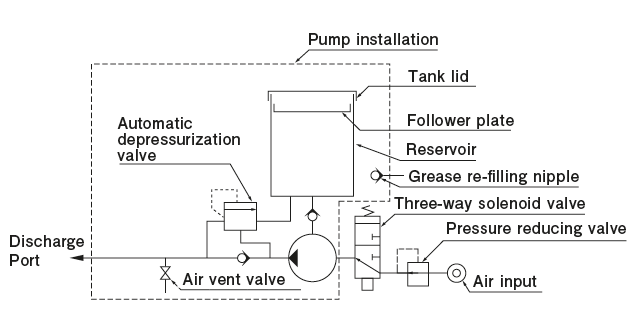

Pump Drawing

GAS type(Air drive pump)) Model Display method

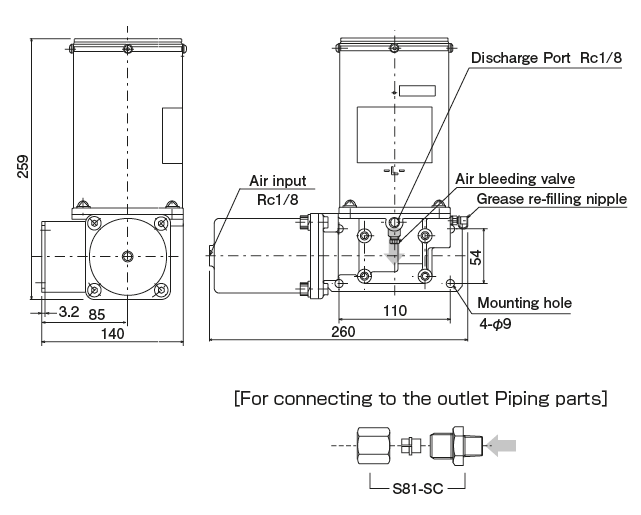

Dimensional Drawing

GAS type(Air drive pump) Dimensional Drawing

Directions for use

● Use manufacturer's warranty grease.

● Never use molybdenum disulfide grease.

● Use lithium grease. (If it is other than Lube original grease, please be sure to consult.)

● Be careful not to mix any foreign matter when replenishing grease or replacing cartridges.

● Be careful not to let air enter the pump when replacing the cartridge.

● After greasing or after replacing the cartridge, be sure to open the air vent plug and vent the air inside the pump.
