General

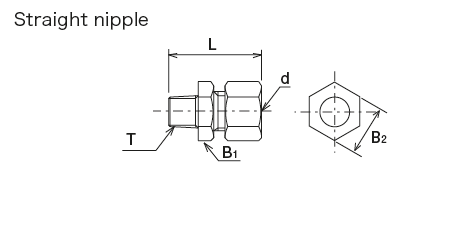

| Model | Part Number | Tube outer diameter d | L | T | B1 | B2 |
|---|---|---|---|---|---|---|
| S61-SC | 250111 | ø 6 | R1/8 | 34.5 | 14 | 14 |
| S62-SC | 290191 | R1/4 | 37.5 | 17 | ||
| S81-SC | 250131 | ø 8 | R1/8 | 35.5 | 17 | |
| S82-SC | 290190 | R1/4 | 37.5 |
●Material：Carbon steel（S25C）

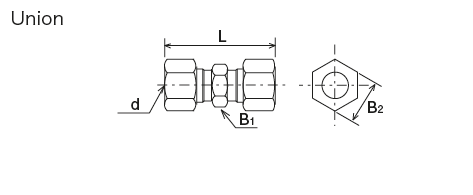

| Model | Part Number | Tube outer diameter d | L | B1 | B2 |
|---|---|---|---|---|---|
| U6-SC | 250112 | ø 6 | 43 | 14 | 14 |
| U8-SC | 250132 | ø 8 | 52 | 17 | 17 |
●Material：Carbon steel（S25C）

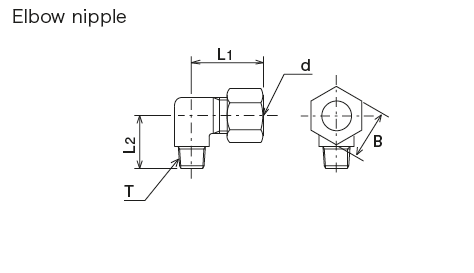

| Model | Part Number | Tube outer diameter d | T | L1 | L2 | B |
|---|---|---|---|---|---|---|
| E61-SC | 250113 | ø 6 | R1/8 | 30.5 | 14 | 14 |
| E62-SC | 290184 | R1/4 | 33.5 | 17 | ||
| E81-SC | 250133 | ø 8 | R1/8 | 16 | 17 | |
| E82-SC | 290043 | R1/4 | 18 |
●Material：Carbon steel（S25C）

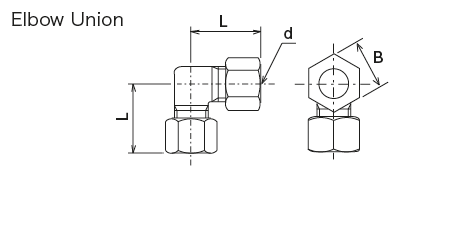

| Model | Part Number | Tube outer diameter d | L | B |
|---|---|---|---|---|
| EU6-SC | 250114 | ø 6 | 26.5 | 14 |
| EU8-SC | 250134 | ø 8 | 33.5 | 17 |
●Material：Carbon steel（S25C）

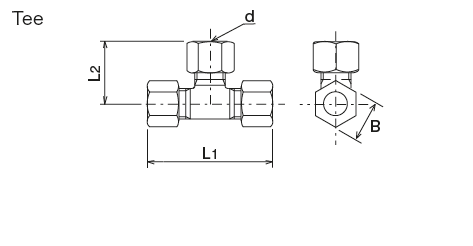

| Model | Part Number | Tube outer diameter d | L1 | L2 | B |
|---|---|---|---|---|---|
| T6-SC | 250115 | ø 6 | 53 | 26.5 | 14 |
| T8-SC | 250135 | ø 8 | 67 | 33.5 | 17 |
●Material：Carbon steel（S25C）

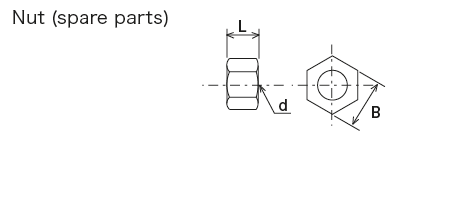

| Model | Part Number | Tube outer diameter d | L | B |
|---|---|---|---|---|
| N6-SC | 250119 | ø 6 | 13 | 14 |
| N8-SC | 250139 | ø 8 | 15 | 17 |
●Material：Carbon steel（S25C）

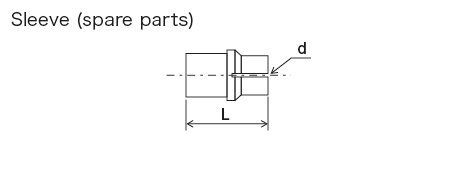

| Model | Part Number | Tube outer diameter d | L |
|---|---|---|---|
| F6-SC | 250118 | ø 6 | 14 |
| F8-SC | 250138 | ø 8 |
●Material：Carbon steel（S25C）
