High pressure fitting (for Copper Tube)

High pressure fitting (for Copper Tube)

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Dimensions

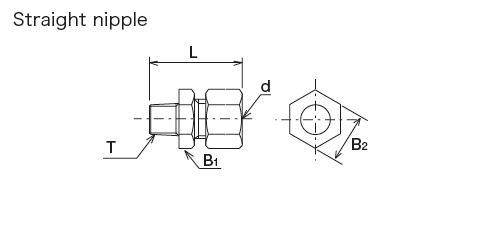

High pressure fitting (for Copper Tube)
 Dimensions
ModelPart NumberTube outer diameter dLTB1B2
S61-BD 250101 ø 6 R1/8 27 12 12
S62-BD 290219 R1/4 34 14 17
S81-BD 250121 ø 8 R1/8 31
S82-BD 290245 R1/4 35

●Material:Brass(C3604BD)

Dimensions

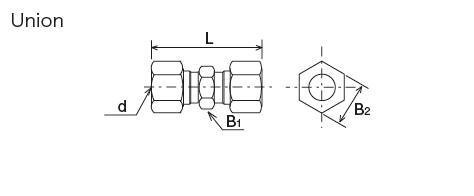

High pressure fitting (for Copper Tube)
 Dimensions
ModelPart NumberTube outer diameter dLB1B2
U6-BD 250102 ø 6 32 12 12
U8-BD 250122 ø 8 40 14 17

●Material:Brass(C3604BD)

Dimensions

High pressure fitting (for Copper Tube)
 Dimensions
ModelPart NumberTube outer diameter dTL1L2B
E61-BD 250103 ø 6 R1/8 20 17 12
E62-BD 290277 R1/4 25 22 17
E81-BD 250123 ø 8 R1/8 26 19
E82-BD 290246 R1/4 22

●Material:Brass(C3604BD)

Dimensions

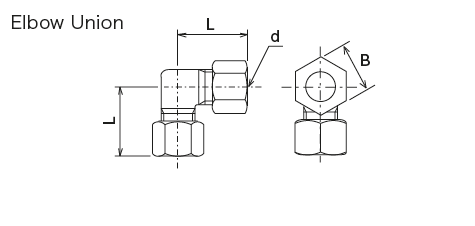

High pressure fitting (for Copper Tube)
 Dimensions
ModelPart NumberTube outer diameter dLB
EU6-BD 250104 ø 6 20 14
EU8-BD 250124 ø 8 29 17

●Material:Brass(C3604BD)

Dimensions

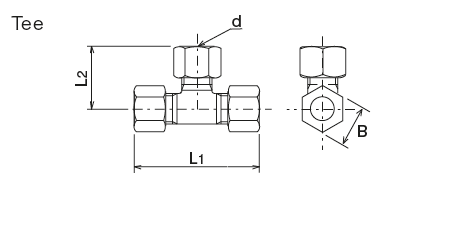

High pressure fitting (for Copper Tube)
 Dimensions
ModelPart NumberTube outer diameter dL1L2B
T6-BD 250105 ø 6 40 20 14
T8-BD 250125 ø 8 58 29 17

●Material:Brass(C3604BD)

Dimensions

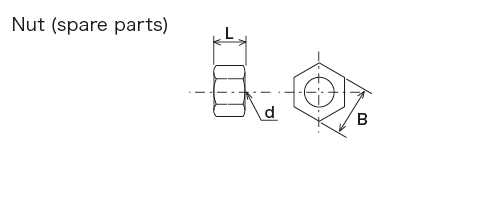

High pressure fitting (for Copper Tube)
 Dimensions
ModelPart NumberTube outer diameter dLB
N6-BD 250109 ø 6 11 14
N8-BD 250129 ø 8 13 17

●Material:Brass(C3604BD)

Dimensions

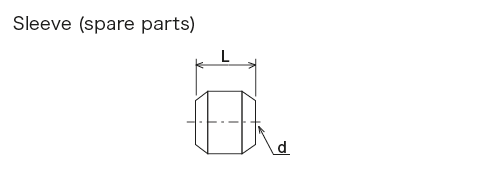

High pressure fitting (for Copper Tube)
 Dimensions
ModelPart NumberTube outer diameter dL
F6-BD 250108 ø 6 6.5
F8-BD 250128 ø 8 8

●Material:Brass(C3604BD)
