EGM-50TH(Auto Lubrication Pump）

EGM-50TH(Auto Lubrication Pump）

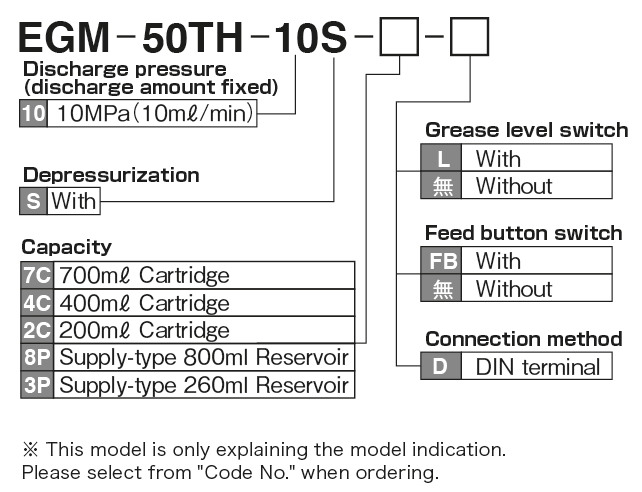

Model indication method

EGM-50TH type(Auto Lubrication Pump） Model Display method

Model	Part Number
EGM-50TH-10S-2C-D	101513
EGM-50TH-10S-3P-D	101523
EGM-50TH-10S-4C-D	101508
EGM-50TH-10S-7C-D	101503
EGM-50TH-10S-7C-LD	101501
EGM-50TH-10S-7C-LFBD	101500
EGM-50TH-10S-8P-D	101518

Repair parts set

Pumping unit (10MPa, 10ml / min) Relief unit dedicated tool

Model	Part Number
50THPRS-10	539461

Specifications

Power	DC24V
Power Consumption	36W
Discharge Pressure	10MPa
Driving time	Continuous Energization
Stop time	No Restriction
Connection Method	DIN terminal
Guaranteed Grease	Lube Original Grease
Feed switch	Yes (optional)
Grease level switch	Yes (7C only)
Covers	Flame retardant resin（ＵＬ94－Ｖ0）
IP standard	Get
CE standard	Get
Pump air removal	Driving timeNo Restriction
Use Consistency Range	NLGI NO. 00. 0. 1
Weight	７Ｃ　２.２kg、４Ｃ　２.１kg ２Ｃ　２.１kg、８Ｐ　3.３kg ３Ｐ　２.２kg

Directions for use

● Use manufacturer's warranty grease.

● Never use molybdenum disulfide grease.

● Use lithium grease. (If it is other than Lube original grease, please be sure to consult.)

● Be careful not to mix any foreign matter when replenishing grease or replacing cartridges.

● Be careful not to let air enter the pump when replacing the cartridge.

● After greasing or after replacing the cartridge, be sure to open the air vent plug and vent the air inside the pump.

Dimensional Drawing

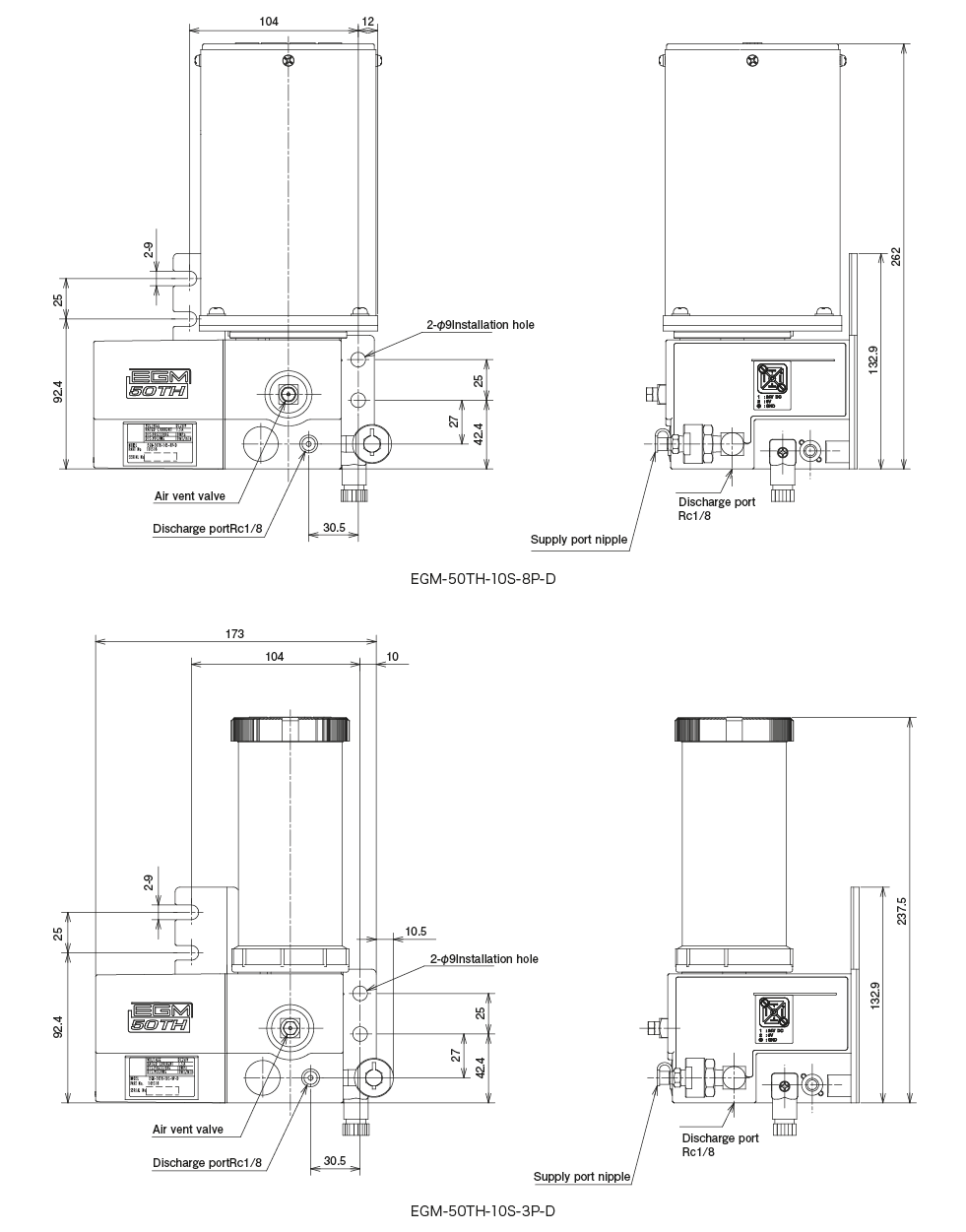

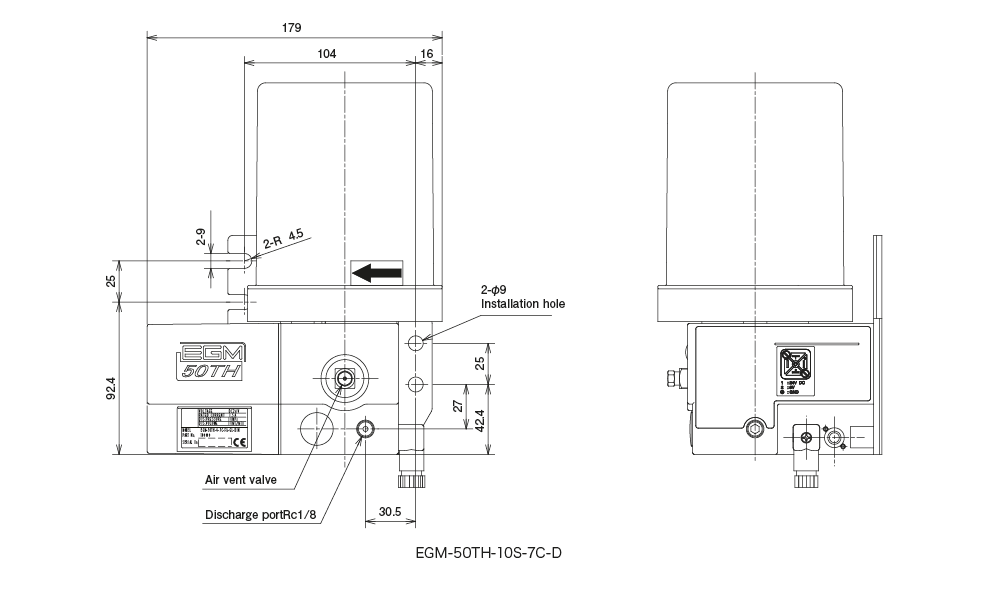

EGM-50TH type(Auto Lubrication Pump） Dimensional Drawing

EGM-50TH type(Auto Lubrication Pump） Dimensional Drawing

EGM-50TH type(Auto Lubrication Pump） Dimensional Drawing

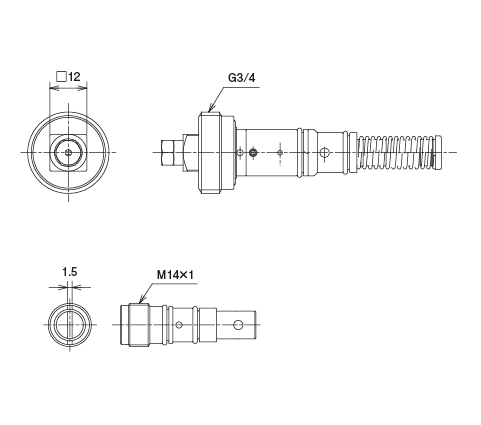

Repair parts set

EGM-50TH type(Auto Lubrication Pump）補修部品セット
