Electric Pump for LHL P-102/107/202/207

Electric Pump for LHL  P-102/107/202/207
  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Model indication method

P-102/107/202/207(LHLPump) Model indication method
ModelPart NumberModelPart Number
P-102(BK) 101002 P-202(BK) 101032
P-102(B) 101006 P-202(B) 101036
P-102F2(BK) 101082 P-207(BK) 101033
P-102F2(B) 101086 P-207(B) 101037
P-107(BK) 101003 P-202F(BK) 101042
P-107(B) 101007 P-202F(B) 101046
P-107F2(BK) 101083 P-207F(BK) 101043
P-107F2(B) 101087 P-207F(B) 101047


Power DC24V
Power Consumption 24W
Discharge volume 7ml/min
Discharge Pressure 5MPa/8MPa
Driving Time Continuous energization
Interval Time More than 10 seconds
Wiring Method Terminal Connection
Use Cartridge LHL-X100、LHL-W100(P-207とP-207Fのみ)
Feed Switch Yes (optional)
Grease level switch Yes
Covers Flame retardant resin (UL94-V0)
IP Standard IP54
CE Approval Yes
Pump air removal No driving time restrictions
Weight P-102:1.2kg、107:1.6kg、202:1.2kg、207:1.6kg

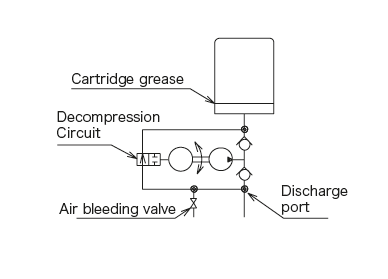

Pump Circuit Diagram

P-102/107/202/207(LHLPump) Model indication method

Directions for use

● Use manufacturer's warranty grease.
● Never use molybdenum disulfide grease.
● Use lithium grease.
(If it is other than Lube original grease, please be sure to consult.)
● Be careful not to mix any foreign matter when replenishing grease or replacing cartridges.
● When replacing the cartridge, be careful not to let air enter Pump.
● After greasing or after replacing the cartridge, be sure to open the air removal plug and remove the air inside the pump.

Dimensional Drawing

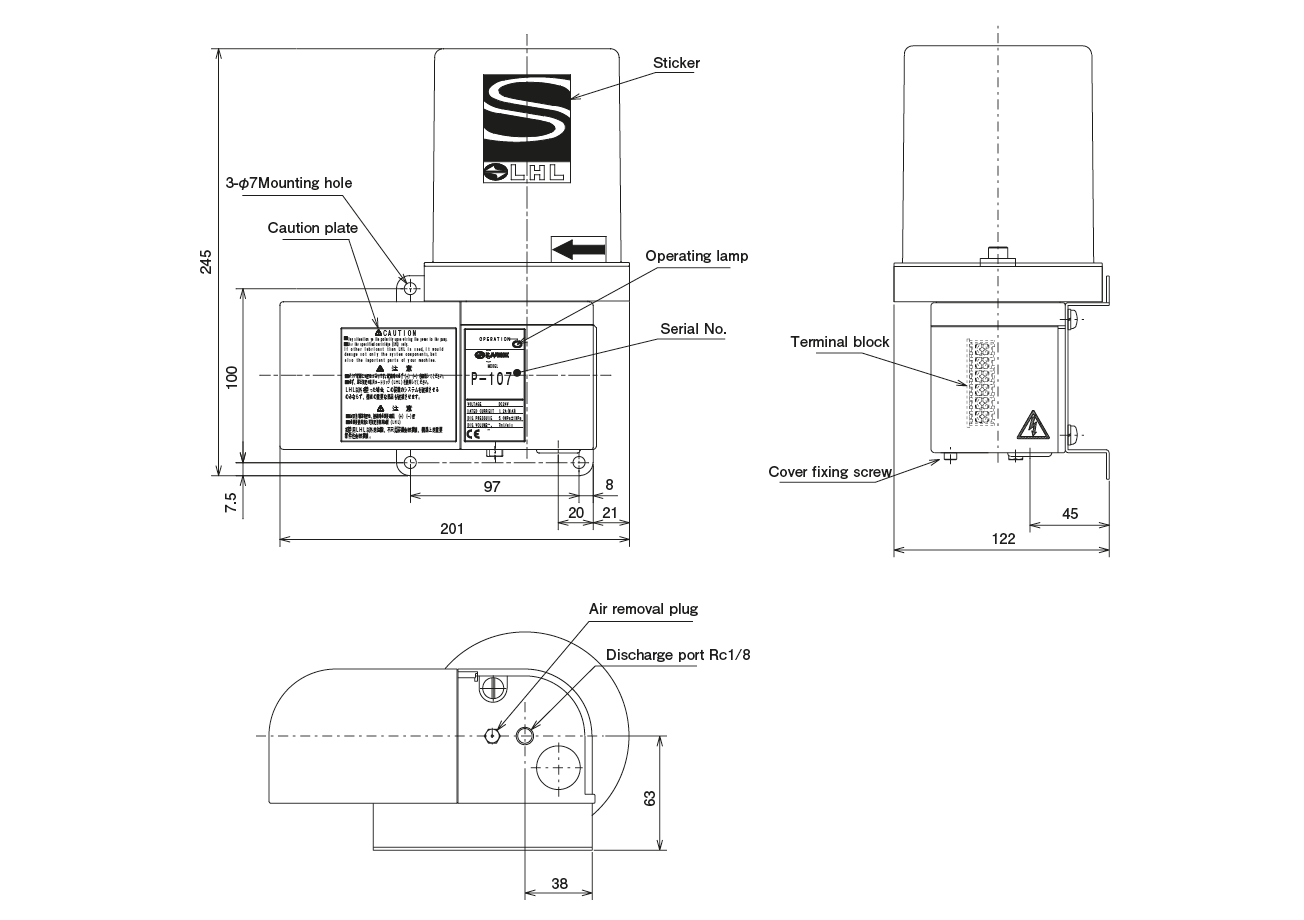

P-102/107/202/207(LHL Pump Dimensional Drawing)

Wiring digram

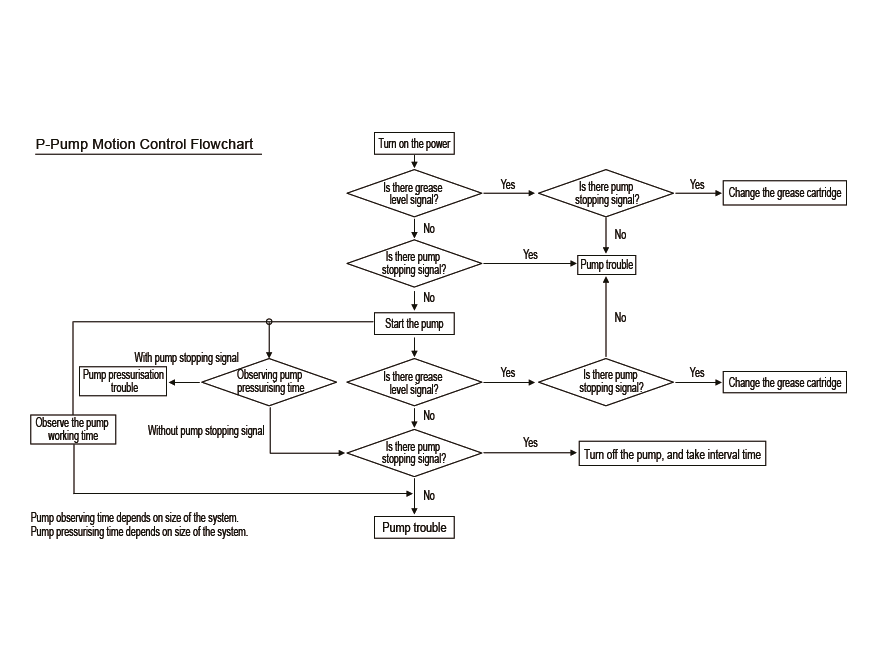

P type Pump Control flow
