World standard LHL system grease lubrication system

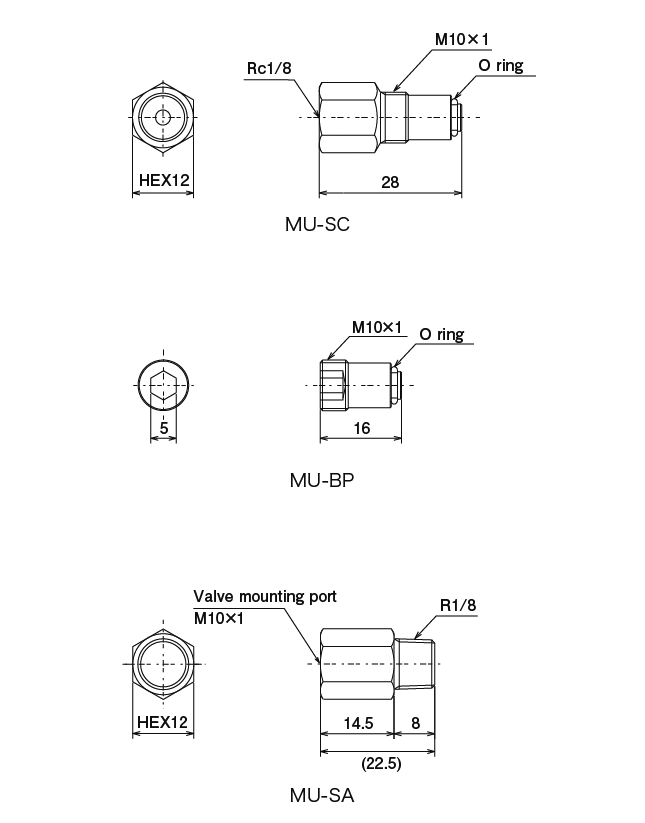

For MU small metering valve installation
| Model | Part Number |
|---|---|
| MU-SC | 619841 |
● (body)：Blass
| Model | Part Number |
|---|---|
| MU-BP | 619840 |
● (body)：Blass
| Model | Part Number |
|---|---|
| MU-SA | 611850 |
● (body)：Blass

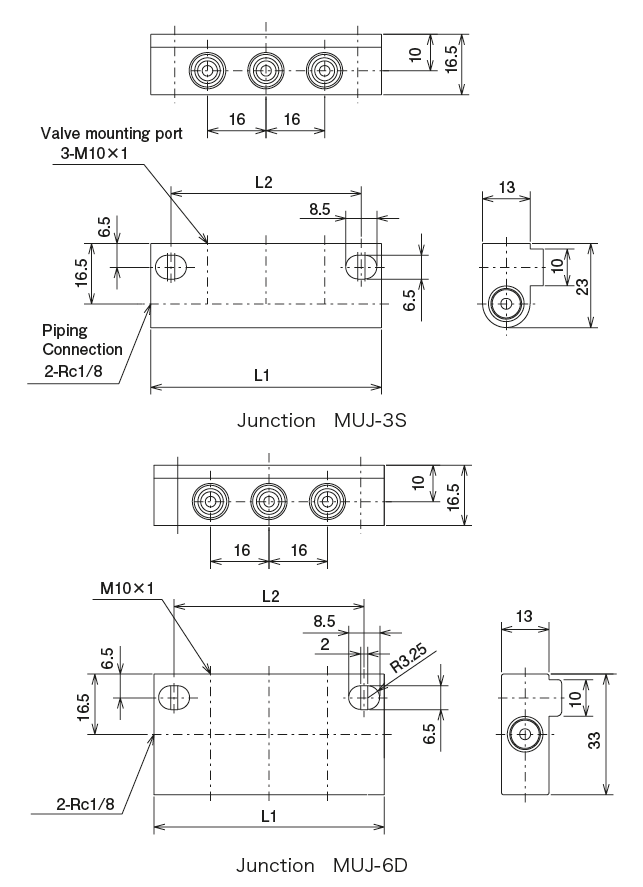

| Model | Part Number | Specifications | L1 | L2 |
|---|---|---|---|---|
| MUJ-1S | 216101 | Single type for 1 ports | 31 | 20 |
| MUJ-2S | 216102 | Single type for 2 ports | 47 | 36 |
| MUJ-3S | 216103 | Single type for 3 ports | 63 | 52 |
| MUJ-4S | 216104 | Single type for 4 ports | 79 | 68 |
| MUJ-5S | 216105 | Single type for 5 ports | 95 | 84 |
| MUJ-6S | 216106 | Single type for 6 ports | 111 | 100 |
| MUJ-7S | 216107 | Single type for 7 ports | 127 | 116 |
| MUJ-8S | 216108 | Single type for 8 ports | 143 | 132 |
| MUJ-9S | 216109 | Single type for 9 ports | 159 | 148 |
| MUJ-10S | 216110 | Single type for 10 ports | 175 | 164 |
| Model | Part Number | Specifications | L1 | L2 |
|---|---|---|---|---|
| MUJ-2D | 216121 | Double type 2 ports | 31 | 20 |
| MUJ-4D | 216122 | Double type 4 ports | 47 | 36 |
| MUJ-6D | 216123 | Double type 6 ports | 63 | 52 |
| MUJ-8D | 216124 | Double type 8 ports | 79 | 68 |
| MUJ-10D | 216125 | Double type 10 ports | 95 | 84 |
| MUJ-12D | 216126 | Double type 12 ports | 111 | 100 |
| MUJ-14D | 216127 | Double type 14 ports | 127 | 116 |
| MUJ-16D | 216128 | Double type 16 ports | 143 | 132 |
●Material：Aluminum（A6063S-T5）
