Main pipe decompression system
| Part Number | Part Number | Discharge volume（mℓ） | Mark |
|---|---|---|---|
| MGLA-10 | 205515 | 0.1 | 10 |
| MGLA-20 | 205518 | 0.2 | 20 |
| MGLA-30 | 205588 | 0.3 | 30 |
| MGLA-50 | 205589 | 0.5 | 50 |
●Material (body)：Zinc die casting (ZDC)
| Discharge volume | 0.1、0.2、0.3、0.5mℓ/stroke |
| Operating Pressure | 2.5MPa |
| Reset Pressure | 1.2MPa |

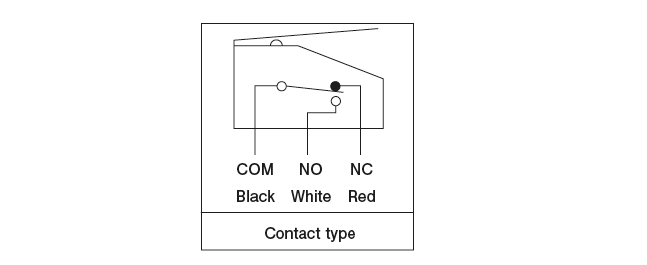

| Contact Capacity | AC125V 2A AC250V 2A DC30V 2A |
※ Please remove from the piping when not using MGLA. If the outlet is plugged, trouble such as sticking may occur.
