Grease PDI Valve with Clogging Indicator Pin MGIⅠ

Grease PDI Valve with Clogging Indicator Pin MGIⅠ

For tightening torque
Please refer to thetightening torque list here!

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

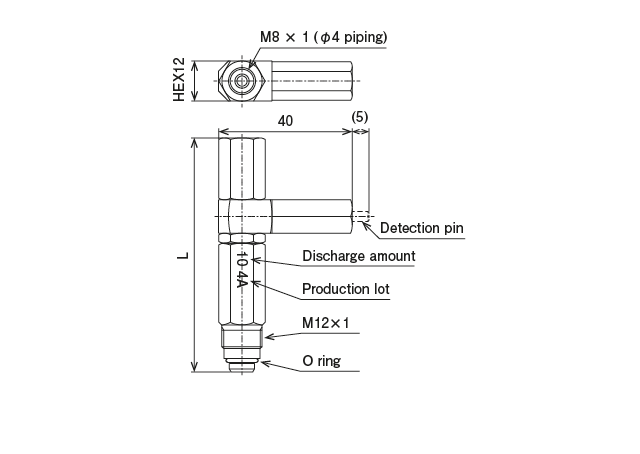

Dimensional Drawing

MG2I typeグリース目詰目視用定量バルブ Dimensional Drawing
Part NumberPart NumberDischarge volume(mℓ)L (mm)Mark
MG2I-5 205822 0.05 70 5
MG2I-10 205823 0.1 70 10
MG2I-20 205824 0.2 86 20
MG2I-30 205825 0.3 86 30

Specifications

Operating Pressure 2.5MPa
Reset Pressure 1.4MPa
Detection pin Operating Pressure 2.5MPa

Material ● (body): Brass

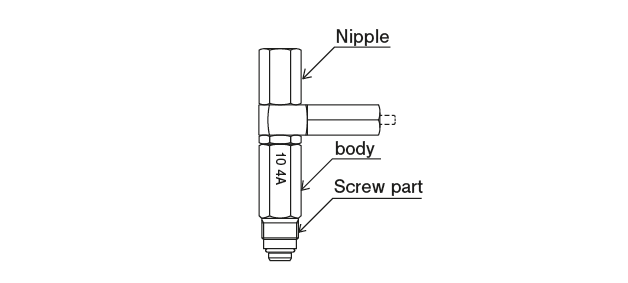

Directions for use

● When mounting a junction, use a spanner on the body to screw it in.
● When connecting pipes, hold the nipple with a spanner and turn the bushing.
※ If the valve is not used, remove the valve and plug directly into the junction without plugging the valve.MG2I type
MG2I type

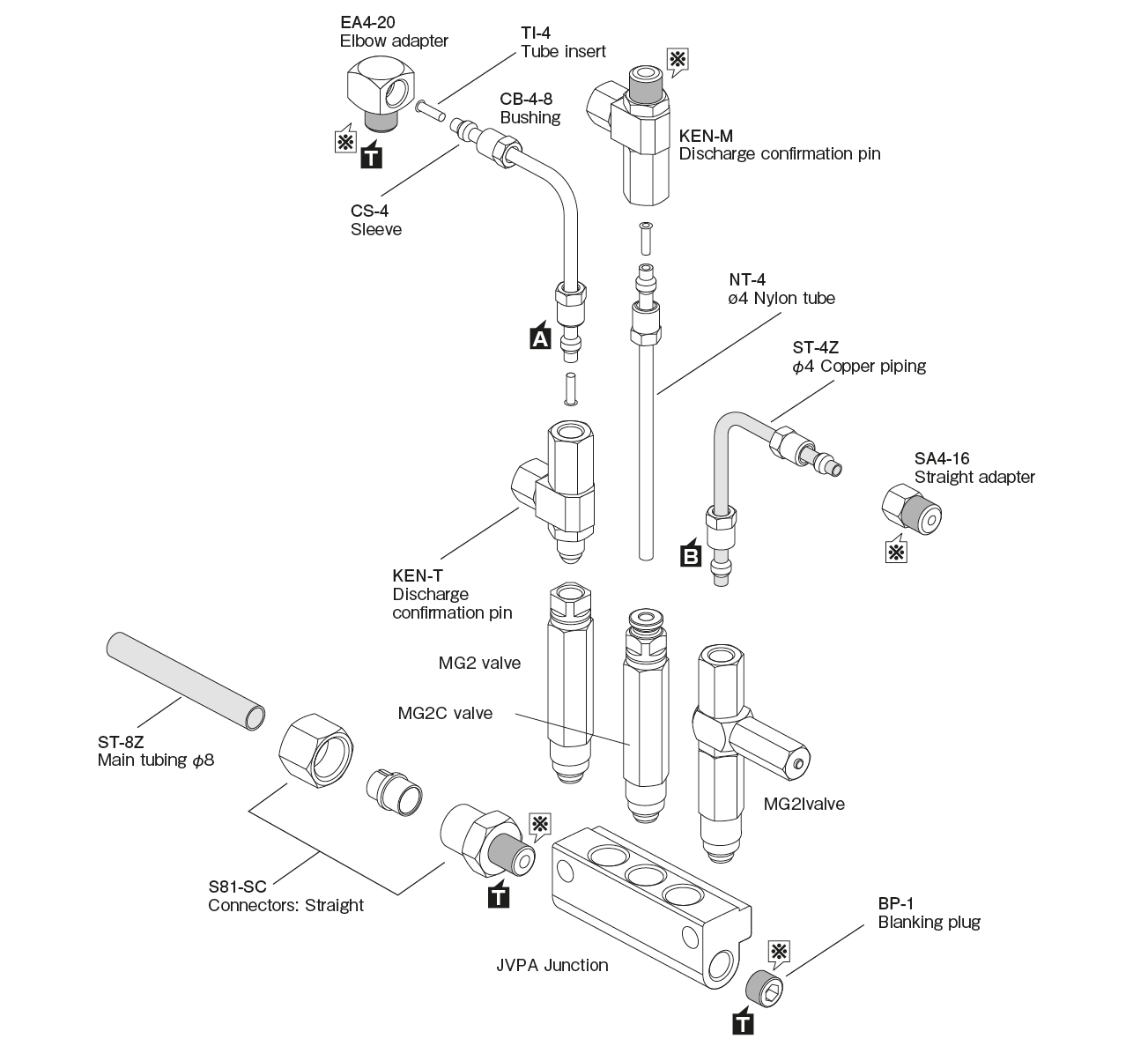

Piping layout diagram (example)

MG2I Grease PDI Valve with Clogging Indicator Pin MGIⅠ  Piping layout diagram (example)Use a sealant at the Mark location.

MG2I Grease PDI Valve with Clogging Indicator Pin MGIⅠ  Piping layout diagram (example)Mark indicates the tightening torque. (Refer to the symbol on tightening torque list.)
