Grease filler pump/Pneumatic Pump for Pail

Grease filler pump/Pneumatic Pump for Pail

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Dimensional Drawing

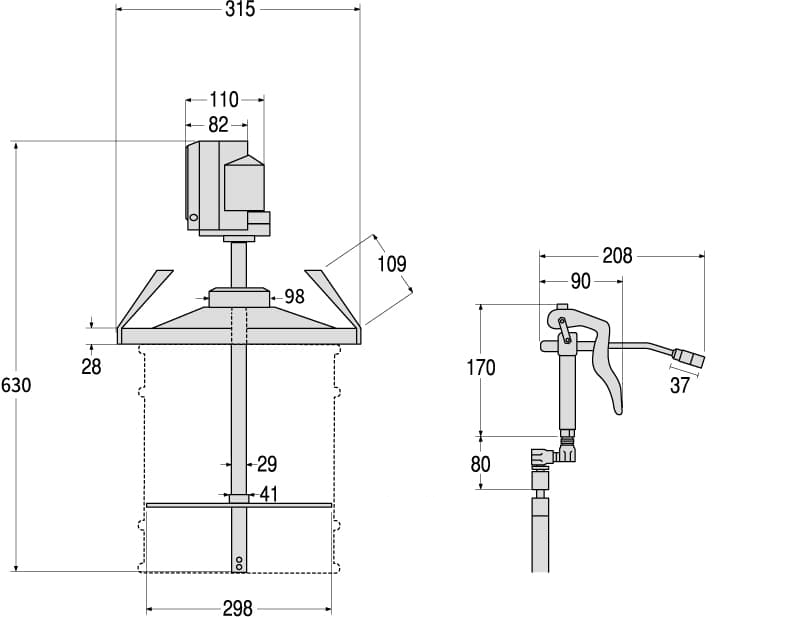

Supply grease Pump Dimensional Drawing

ModelPart Number
P3-01JC JC0005

※ The caster in the above picture is optional.

Specifications

Discharge volume 540mℓ/min
Discharge Pressure 34.3MPa
Working air pressure 0.4〜0.7MPa
Air consumption 315ℓ/min(ANA)
Grease Capacity 16〜20kg CAN
PumpWeight 9kg
