Progress method
For tightening torque
Please refer to thetightening torque list here!

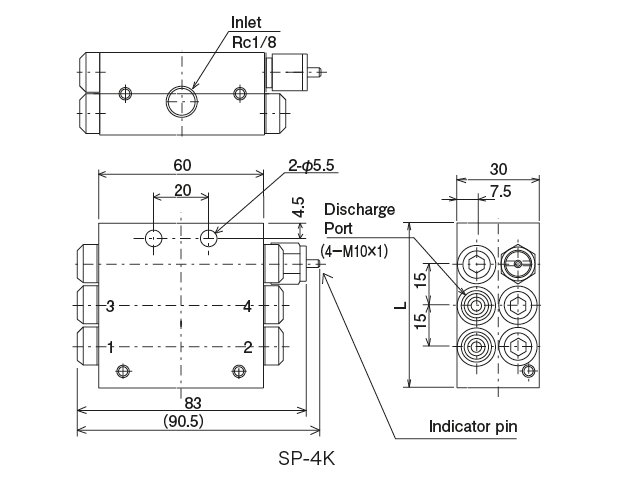

| Model | Part Number | Number of discharge ports | Valve size (L) |
|---|---|---|---|
| SP-4K | 205530 | 4 | 60 |
| SP-4 | 205540 | 4 | |
| SP-4S | 205535 | 4 | |
| SP-6K | 205531 | 6 | |
| SP-6 | 205541 | 6 | |
| SP-6S | 205536 | 6 | |
| SP-8K | 205532 | 8 | 75 |
| SP-8 | 205542 | 8 | |
| SP-8S | 205537 | 8 | |
| SP-10K | 205533 | 10 | 90 |
| SP-10 | 205543 | 10 | |
| SP-10S | 205538 | 10 | |
| SP-12K | 205534 | 12 | 105 |
| SP-12 | 205544 | 12 | |
| SP-12S | 205539 | 12 |
| Model | Part Number |
|---|---|
| SPB | 611785 |
| SW-10 | 207611 |
| SPC | 611677 |
| SPA-6 | 619780 |
| SPS | 611695 |
| SPN | 611784 |
| SPA-4 | 166005 |
S: Adapter for proximity sensor mounting included
K: With visual check pin
| Discharge volume | 0.2mℓ/ stroke |
| Discharge port | Tube of 6mm, 4mm O.D used |
| Grease inlet | Rc1/8 |
| Max. working pressure | 20MPa |
| Minimum operating pressure | 2MPa |
| Working consistency | NLGI No.000〜No.2 |
| Performance monitor | Indicator pin (K type) |
| Material | Aluminum |

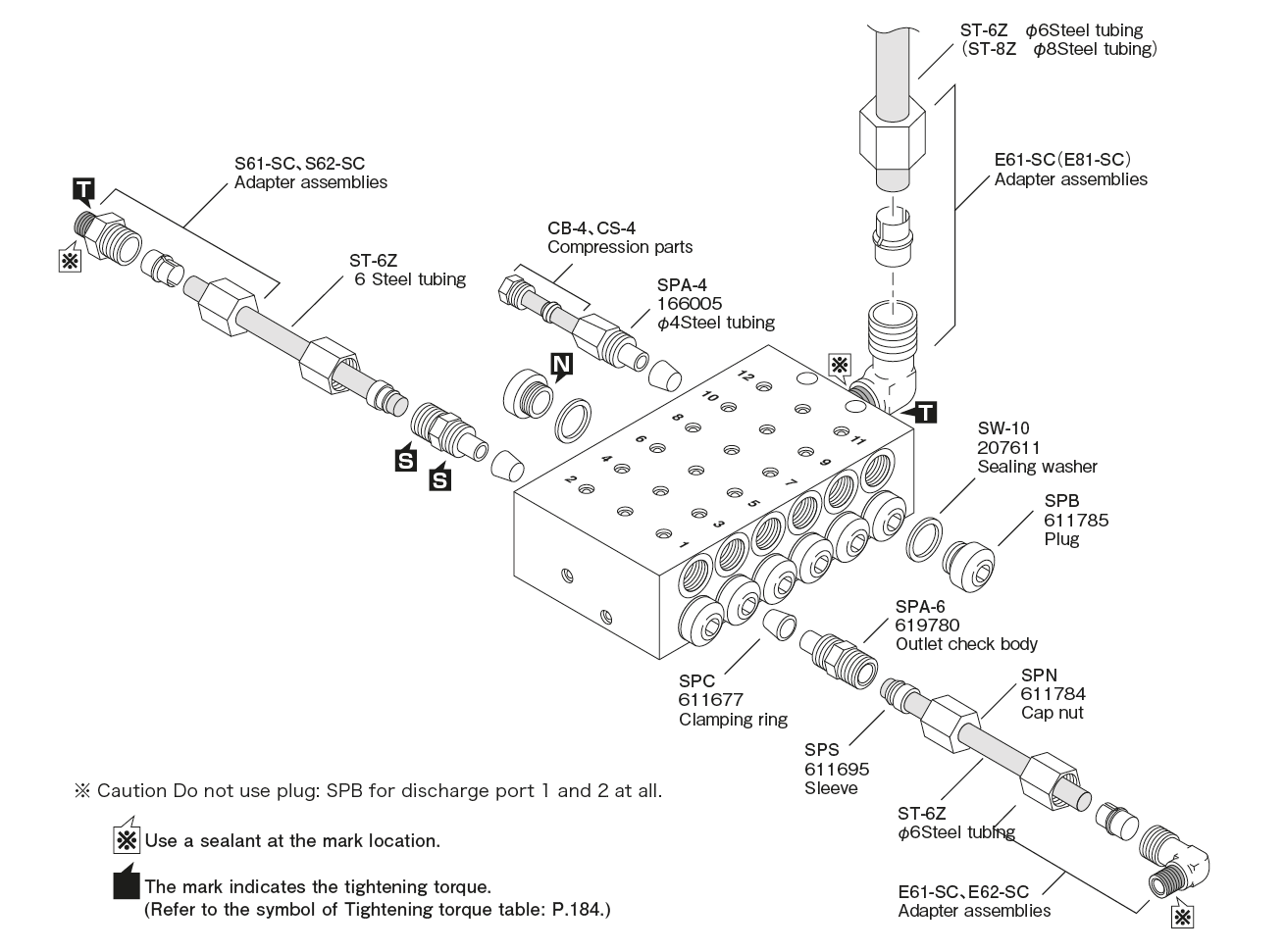

Use a sealant at the Mark location.
Mark indicates the tightening torque. (Refer to the symbol of tightening torque list.)
