Pneumatic piston pump LT-S

Pneumatic piston pump LT-S

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Dimensional Drawing

Pneumatic piston pump LT-S

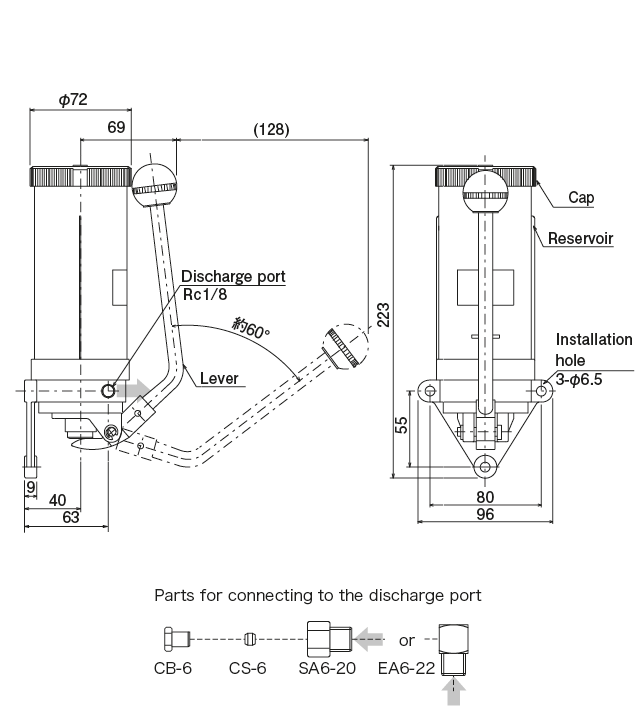

 Dimensional Drawing

Directions for use

● Since the viscosity of oil changes depending on the oil temperature in summer and winter, be careful to use it within the operating viscosity range. Please see the viscosity table.

● Do not use special additive oil, water-soluble oil or solvent.

● Regularly inspect the oil in use for contamination, etc. If any are found, immediately flush the tank and replace it with new oil.

● Do not overtighten the outlet fitting. Please refer to the tightening torque chart.

● Please put clean oil.

● The total discharge volume of the metering valve used is within 5 ml.

● Please contact our Global Center for system design.

Specifications

Pump Discharge Volume 8ml/shot
Discharge Pressure 3.4MPa (safety valve set pressure)
Working Viscosity Range 65〜1300mm²/s
Reservoir Capacity 260mℓ(plastic)
Weight 1.2kg
Other With pressure relief mechanism
ModelPart Number
LT-S 103421
