Oil lubrication system

Reservoirs

Resin reservoirs 0.2/0.4ℓ

Resin reservoirs 0.2/0.4ℓ

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

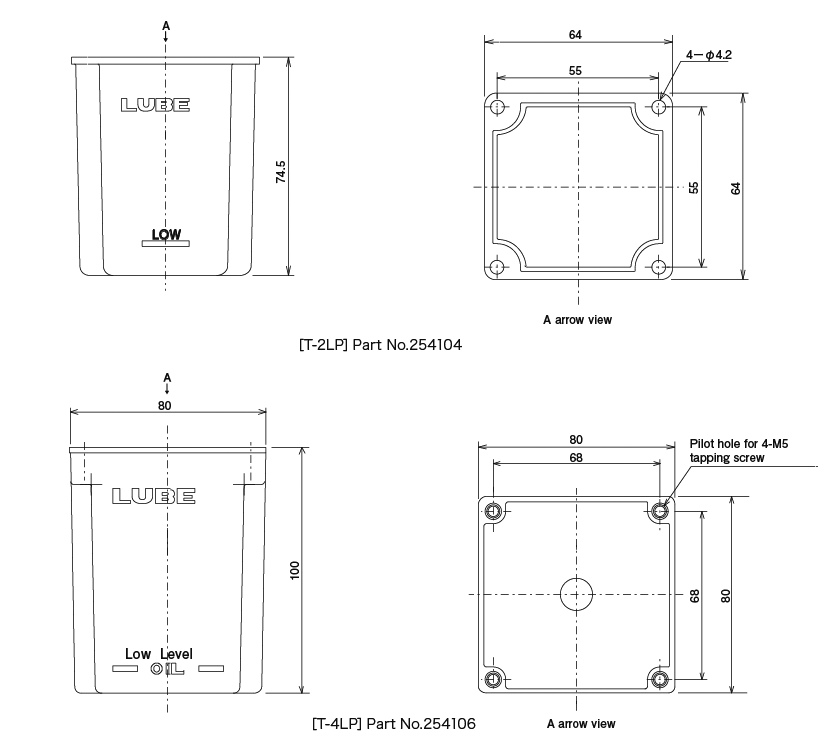

Dimensions

ResinReservoir0.2・0.4ℓDimensions

Pump Circuit Diagram

ModelApplicable PumpPart NumberEffective capacityAll Capacity
T-2LP L3 254104 0.2ℓ 0.22ℓ
T-4LP EX-5、L5 254106 0.4ℓ 0.5ℓ

●Material:Saturation PolyesterResin

Directions for use

● Do not use solutions.
● Clean once a year.
● Please refer to the instruction manual for details.
