Piping Parts

General

Junctions for Grease PDI Valve

Junctions for Grease PDI Valve



  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

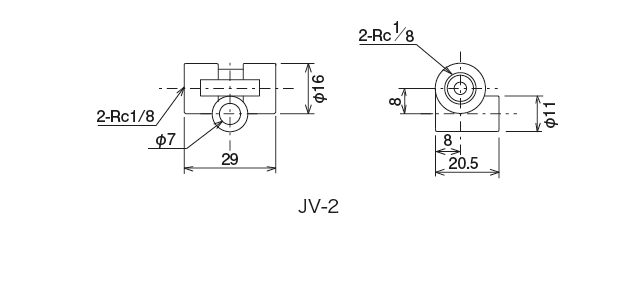

Dimensional Drawing

JV type(Junction)
 Dimensional Drawingなど
ModelPart Number
JV-2 206470

● Material: Zinc die cast (ZDC)

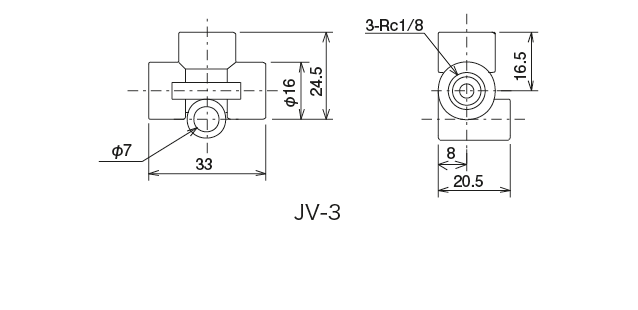

Dimensional Drawing

JV type(Junction)
 Dimensional Drawingなど
ModelPart NumberSpecifications
JV-3 206471 Single type 1ports

● Material: Zinc die cast (ZDC)

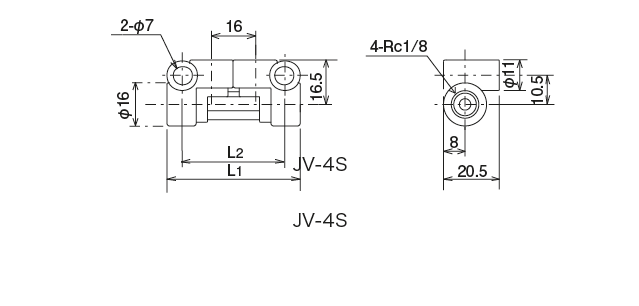

Dimensional Drawing

JV type(Junction)
 Dimensional Drawingなど
ModelPart NumberSpecificationsL1L2
JV-4S 206472 Single type 2ports 49 38
JV-5S 206473 Single type 3ports 65 54
JV-6S 206474 Single type 4ports 81 70
JV-7S 206475 Single type 5ports 97 86
JV-8S 206476 Single type 6ports 113 102
JV-9S 206479 Single type 7ports 129 118
JV-10S 206543 Single type 8ports 145 134

● Material: Zinc die cast (ZDC)

Dimensional Drawing

JV type(Junction)
 Dimensional Drawingなど
ModelPart NumberSpecifications
JV-4D 206464 Double type 2ports

●Material: Brass(C3604)

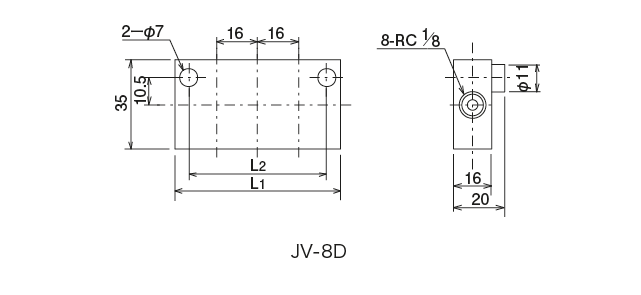

Dimensional Drawing

JV type(Junction)
 Dimensional Drawingなど
ModelPart NumberSpecificationsL1L2
JV-6D 206465 Double type 4ports 49 38
JV-8D 206466 Double type 6ports 65 54
JV-10D 206467 Double type 8ports 81 70
JV-12D 206468 Double type 10ports 97 86
JV-14D 206469 Double type 12ports 113 102

●Material: Brass(C3604)
