Dimensions

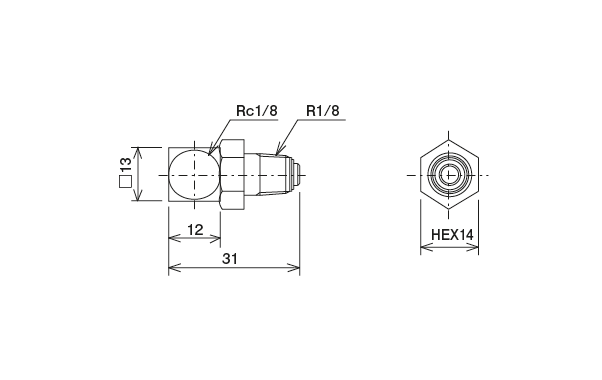

SVL Type (Rotary Joint)
 Dimensions
ModelPart NumberWorking pressureSpecification
SVL 109412 0.8 MPa 100 rpm/MAX

●Material:(Body)SS400B

Directions for use

● Always use at the maximum speed or less.
● The swivel is used as a joint for rotational movement or rocking movement.
