Flexible hose (For low pressure)

Flexible hose (For low pressure)

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

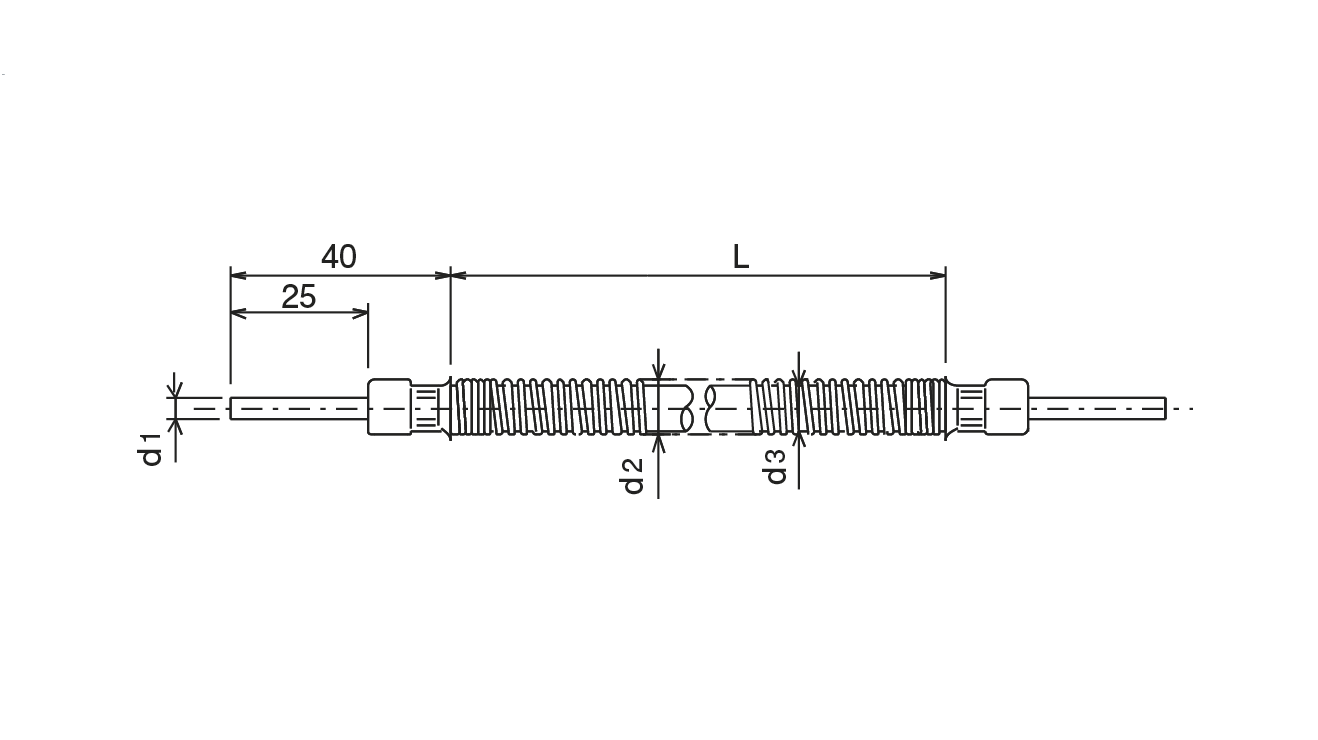

Dimensional Drawing

FModel FH (Flexible hose [for low pressure])
 Dimensional Drawing

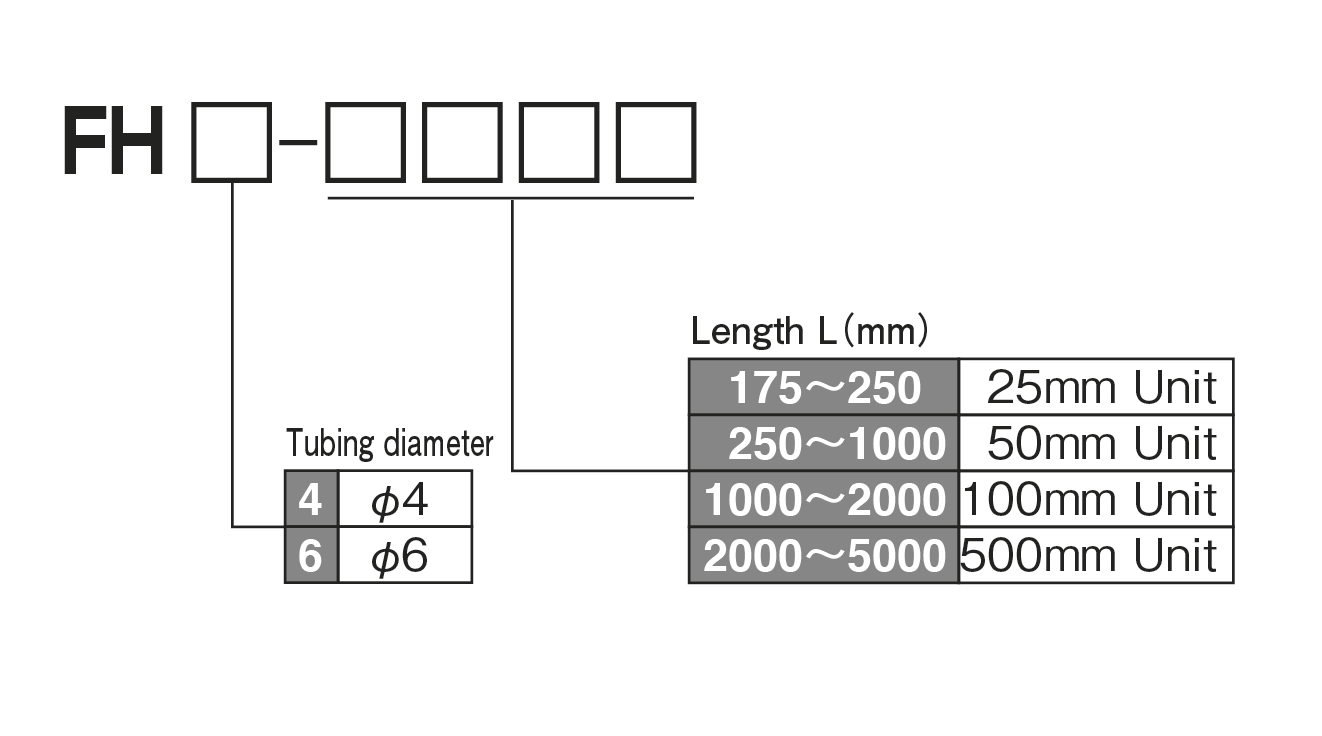

Model indication method

FModel FH (Flexible hose [for low pressure])
Model Display method

Specifications

Outer Diameter of Pipe(φ) 4 6
Working Pressure(MPa) 3 4
Operating temperature limit −20℃〜+90℃
Minimum Bending Radius(R) 40 120
d1(φ) 4 6
d2(φ) 8 10
d3(φ) 10 13.5

● Material: (Hose section) NBR, (Spring guard section) SWRS (Caulking section) C2680P Base C3602BD

Directions for use

● Make sure that the length, bending radius and Working Pressure have room.
● Be careful not to twist when piping.
● Avoid piping that is bent near the hose clamps.

FModel FH (Flexible hose [for low pressure])
Directions for use
