Tubing Parts

General

Connectors SC

Connectors SC

RoHS基準に対応した製品もご用意しております。詳しくは、お近くの営業所までお問い合せください。

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

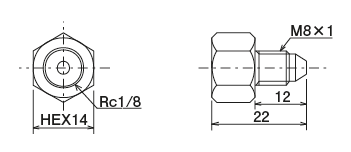

Dimensions

SC · EC · TC Type (connector)
 Dimensions

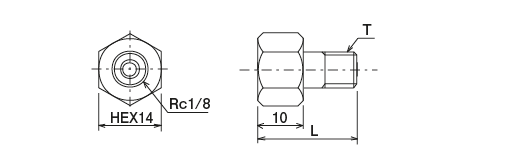

ModelPart NumberLT
SC1-20 106141 20 R1/8
SC1-25 106142 25
SC1-30 106143 30
SC1-40 106144 40
SC1-50 106145 50
SC1-60 106146 60
SC2 206141 20 R1/4

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions
ModelPart Number
SC-8T 106147

●Material:Brass(C3604)

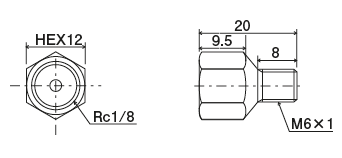

Dimensions

SC · EC · TC Type (connector)
 Dimensions
ModelPart Number
SC-6A 106154

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions

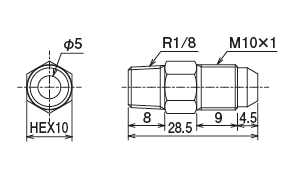

ModelPart Number
SC-10T 166152

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions

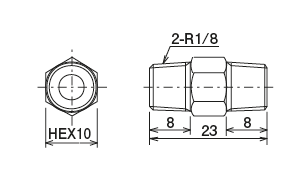

ModelPart Number
SCR 106151

●Material:Brass(C3604)

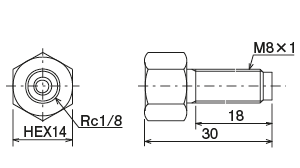

Dimensions

SC · EC · TC Type (connector)
 Dimensions
ModelPart Number
SC-4 106174

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions
ModelPart Number
SC-10A 106177

●Material:Brass(C3604)

※ This adapter is used together with a sealing washer.

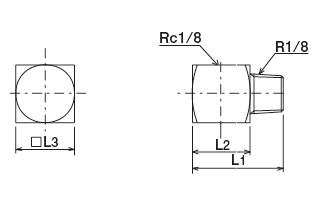

Dimensions

SC · EC · TC Type (connector)
 Dimensions
ModelPart NumberL1L2L3
EC1-22 106101 22 14 14
EC1-25 106102 25
EC1-30 106103 30
EC1-40 106104 40
EC1-50 106105 50
EC1-60 106106 60
EC1-20 106107 20 12 12

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions

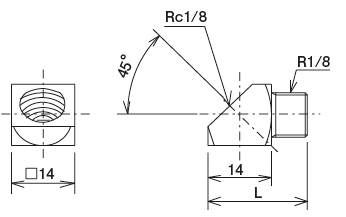

ModelPart NumberL
ECC-22 106121 22
ECC-25 106122 25
ECC-30 106123 30
ECC-40 106124 40
ECC-50 106125 50
ECC-60 106126 60

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions

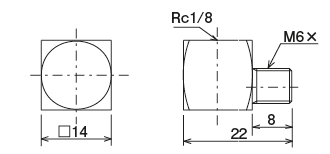

ModelPart Number
EC-6A 106181

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions

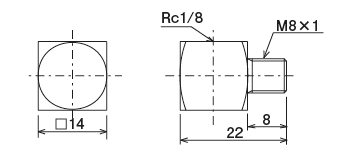

ModelPart Number
EC-8A 106182

●Material:Brass(C3604)

Dimensions

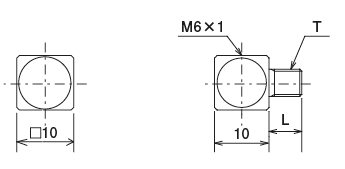

SC · EC · TC Type (connector)
 Dimensions
ModelPart NumberLT
ECM-5A 106183 6 M5 × 0.8
ECM-6B 106184 M6 × 0.75
ECM-6A 106185 M6 × 1(taper1/16)
ECM-6BL 106192 8 M6 × 0.75(taper1/16)

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions

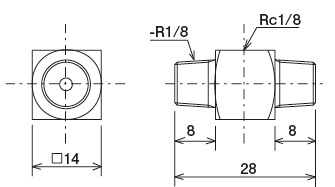

ModelPart Number
TCR 106161

●Material:Brass(C3604)

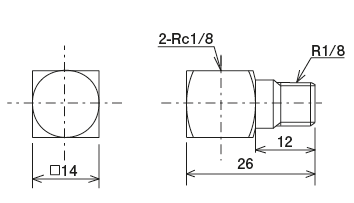

Dimensions

SC · EC · TC Type (connector)
 Dimensions
ModelPart Number
TCF 106171

●Material:Brass(C3604)

Dimensions

SC · EC · TC Type (connector)
 Dimensions

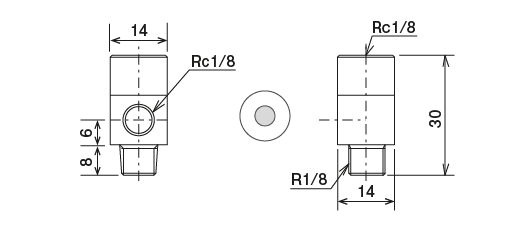

ModelPart Number
PGC 106169

●Material:Brass(C3604)

It is a branch connector for pressure gauge installation.
