PJ2 for 6mm tubing

PJ2  for 6mm tubing



  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

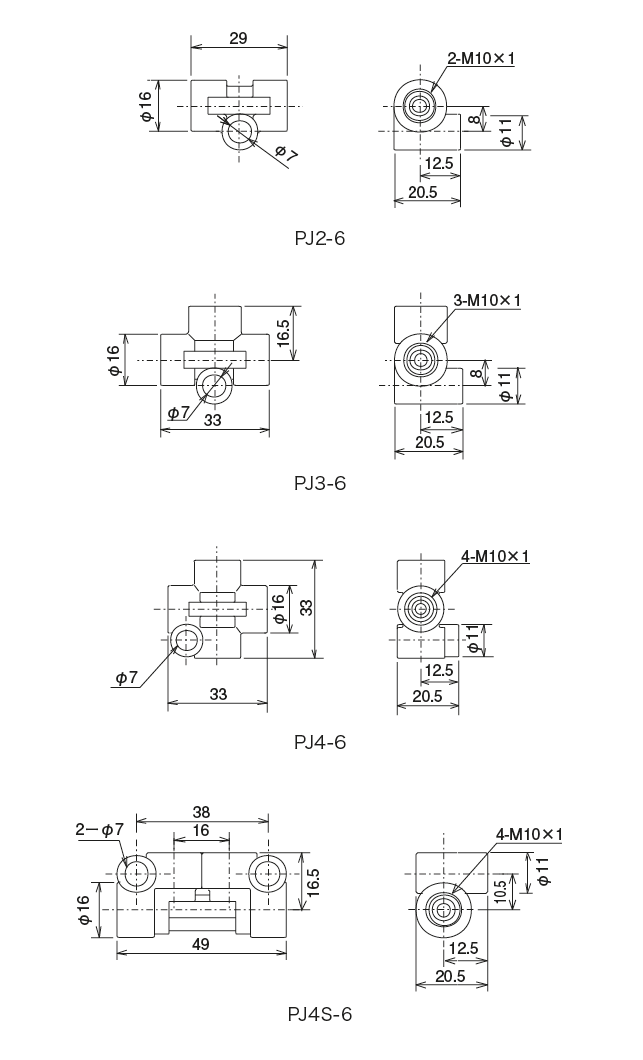

Dimensional Drawing

PJ type(Main pipe branch junction)
 Dimensional Drawingなど
ModelPart NumberSpecifications
PJ2-6 206452 2 Direction
PJ3-6 206453 3 Direction
PJ4-6 206454 4 Direction
PJ4S-6 206461



●Material:Zinc die casting (ZDC)

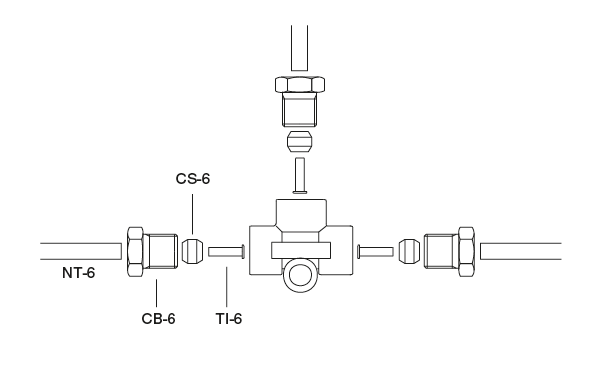

Nylon pipe NT-6 connection example

PJ type(Main pipe branch junction)
 NylonPipeNT-6 Connection example

※ Screw size of the hole is different for JV type and PJ type. Be careful not to make a mistake in arranging the parts, as it may cause a leak due to poor piping connection.
