Oil lubrication system

Air driven dispensing system

LUBFIT LF-53・55・60 LUBFIT LF-65

LUBFIT LF-53・55・60 LUBFIT LF-65



  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Specifications

  LF-53 LF-55 LF-60 LF-65
Appearance No color transparent liquid No color transparent liquid No color transparent liquid No color transparent liquid
Density(g/cm³) 0.76 0.79 0.79 0.9
Viscosity(mm²/s,40℃) 1.5 2.2 2.2 27
Flash point(℃) over 70 over 80 over 80 over 150
Copper plate corrosion(100℃/h) Without discoloration Without discoloration Without discoloration Without discoloration

※ Number is measured value. It is not a standard value.

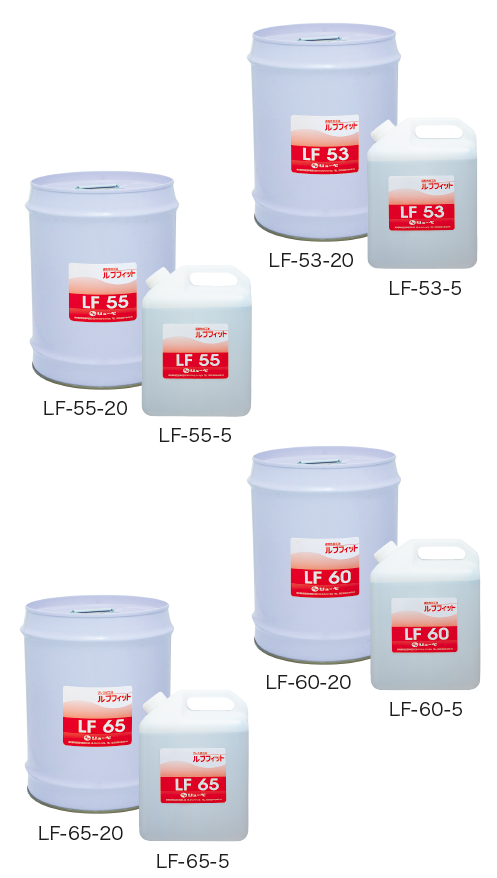

Modelcapacity
LF-53-5 5ℓ
LF-55-5
LF-60-5
LF-65-5
LF-53-20 20ℓ
LF-55-20
LF-60-20
LF-65-20
Lubfit processing oil series

Specifications

  LF-15 LF-15B LF-20
Appearance Yellowish Green color transparent liquid Light Yellow color transparent liquid Light Green color transparent liquid
density(g/cm³) 0.87 0.9 0.9
Viscosity(mm²/s,40℃) 8 20 36
Flash point(℃COC) 222 230 320
Copper plate corrosion(100℃/h) Inactive Inactive Inactive
Pour point(℃) −37.5 −20 −20
Biodegradation rate(%) 約86 約95 約99
component Oil Over 50wt% Over 90wt%
Synthetic lubricant Over 90wt% Over 50wt%
Chlorine content Does not contain Does not contain Does not contain
Sulfur content Does not contain Does not contain Does not contain

※ Number is measured value. It is not a standard value.



Modelcapacity
LF-15-4 4ℓ
LF-15B-4
LF-20-4
LF-15-20 20ℓ
LF-15B-20
LF-20-20
Lubfit processing oil series

Directions for use

● Be sure to read the Product Safety Data Sheet before use.
●.Please keep in a cool dark place
