Air driven dispensing system
Biodegradable processing oil, a quick-drying processing oil beginning, a wide range of solutions can be used. Since it is Pump control (in the case of a pulse oscillator used) in the only air supply, it is Pump that can be used in Explosion.

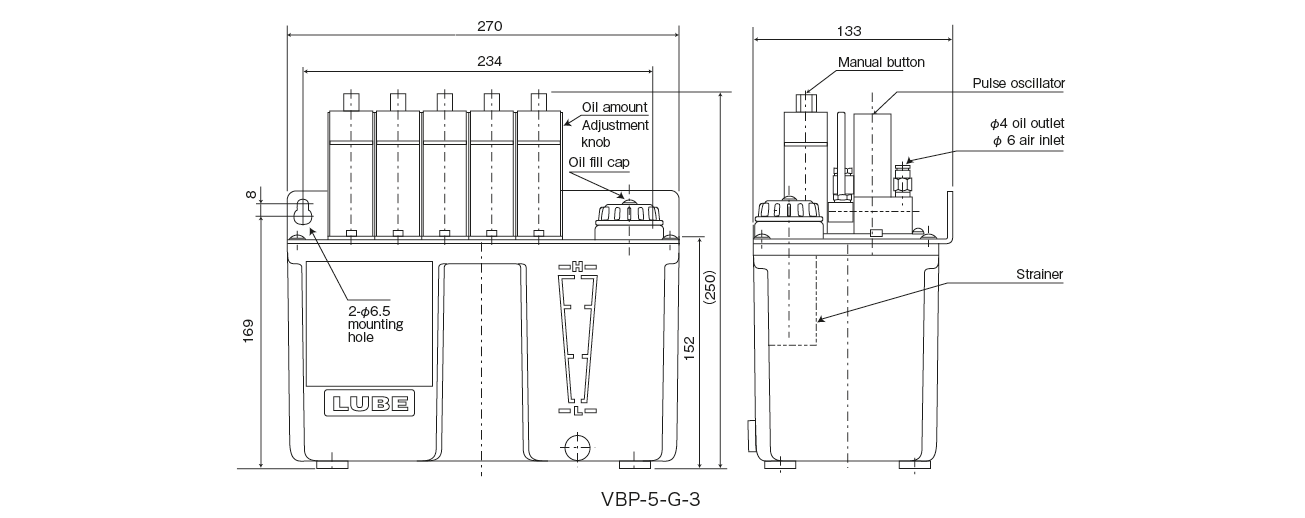

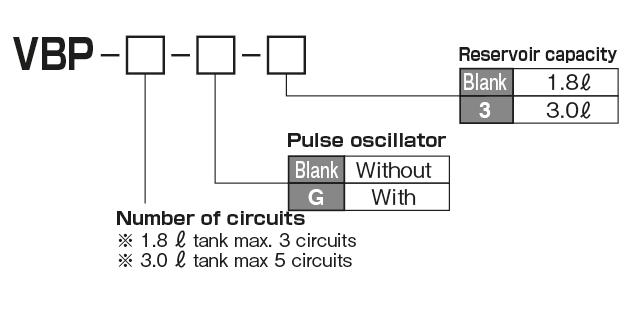

| Model | Part Number | Number of circuits | Generator | reservoirs | |
|---|---|---|---|---|---|
| 1.8ℓ | 3.0ℓ | ||||
| VBP-1 | 112740 | 1 | ○ | ||
| VBP-2 | 112741 | 2 | ○ | ||
| VBP-3 | 112742 | 3 | ○ | ||
| VBP-1-G | 112746 | 1 | ○ | ○ | |
| VBP-2-G | 112747 | 2 | ○ | ○ | |
| VBP-3-G | 112748 | 3 | ○ | ○ | |
| VBP-1-3 | 112752 | 1 | ○ | ||
| VBP-2-3 | 112753 | 2 | ○ | ||
| VBP-3-3 | 112754 | 3 | ○ | ||
| VBP-4-3 | 112755 | 4 | ○ | ||
| VBP-5-3 | 112756 | 5 | ○ | ||
| VBP-1-G-3 | 112762 | 1 | ○ | ○ | |
| VBP-2-G-3 | 112763 | 2 | ○ | ○ | |
| VBP-3-G-3 | 112764 | 3 | ○ | ○ | |
| VBP-4-G-3 | 112765 | 4 | ○ | ○ | |
| VBP-5-G-3 | 112766 | 5 | ○ | ○ | |
| Discharge volume | 0〜0.07mℓ/ shot |
| Discharge cycle | 2 times per second (maximum) |
| Pump ratio | 1:05 |
| (Air pressure: 0.3 MPa, Discharge pressure: 1.5 MPa, Discharge volume: 0.05 ml / shot) | |
| Working air pressure power range | 0.3〜0.7MPa |
| 0.4 to 0.7MPa (Pulse oscillator Specification) | |
| Use viscosity range | 2〜180mm²/s |
| Standard number of pump circuits | 1.8 ℓ Reservoirs: 3 circuits |
| 3.0 ℓ Reservoirs: 5 circuits | |
| reservoirs capacity | 1.8ℓ、3ℓResinReservoirs (standard) |
A special unit with a combination of pump circuit and Reservoirs capacity is also available.
● If you use a special fluid, please contact our Global Center.
● Please see the instruction manual.

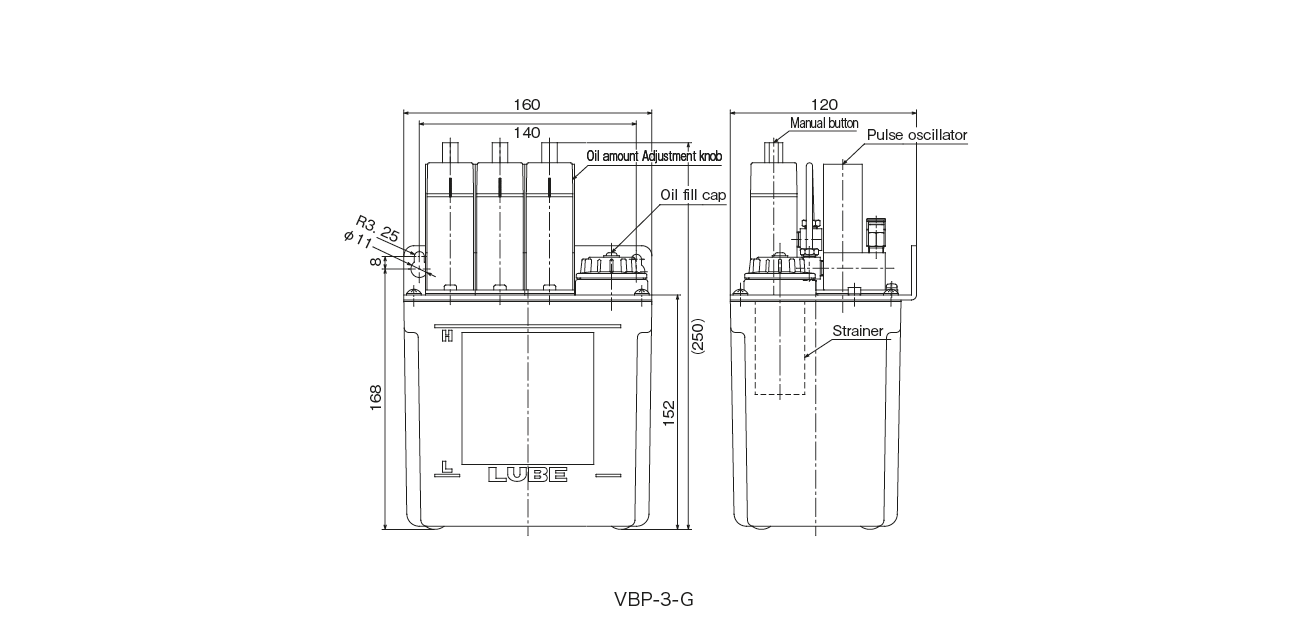

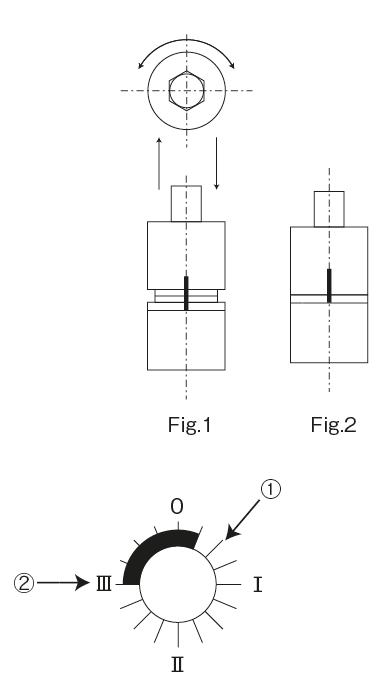

| Number of turns of knob | 0 | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 14 |
|---|---|---|---|---|---|---|---|---|---|
| Discharge volume per shot | 0 | 0.005 | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 | 0.06 | 0.07 |
Caution: The scale setting below 1 rotation makes the Discharge volume unstable. Please use with setting of 1 rotation or more if possible.
Unit: cc / shot
Adjust using a flathead screwdriver according to Table 2. The value of "scale and number of discharges" is a reference value, and the variation of each pulse oscillator is about ± 30%. Make fine adjustments to the table values as a guide only.
Unit: times / minute
| position | scale | Pressurized air pressure (MPa) | ||
|---|---|---|---|---|
| 0.3 | 0.4 | 0.5 | ||
| ① | ＊ | 150 | 130 | 120 |
| ② | Ⅲ | 3 | 3 | 3 |
△ Attention
1. The discharge speed of the pulse oscillator changes with pressurized air pressure as described above. Be sure to set the pressure of pressurized air with the pressure reducing valve.
2. Do not use in the division between position 2 and 1 on the pulse oscillator scale.
At the initial operation of Pump, air removal work is required. Air removal is performed by operating the Pump with the Discharge volume set to maximum (14 knobs) or operating the manual button.
