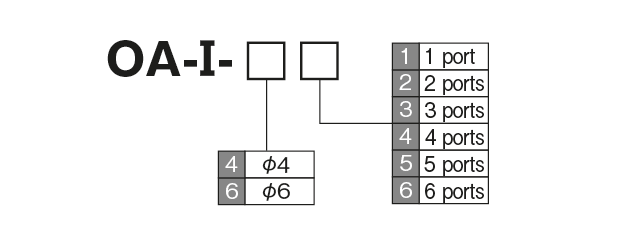

Model indication method

OA- I(Air-Oil Sensor)

 Model indication method

Specifications

Power/Voltage DC24±10 %
Abnormal output Photo coupler (open collector)
Working temperature range 0〜+50℃(no sweating)
Working ambient humidity 35〜85%RH
Part NumberOuter Diameter of Pipe(φ)
420031 4
420032 6

Oil and Air Sensor Mounting Plate

Sequential numberL1L2Part Number
1 60 44 613011
2 88 72 613012
3 116 100 613013
4 144 128 613014
5 172 156 613015
6 200 184 613016

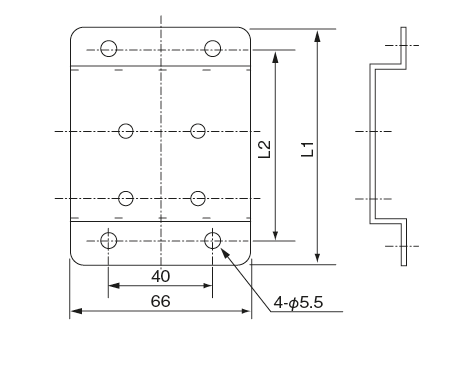

Dimensional Drawing

OA- I(Air-Oil Sensor)

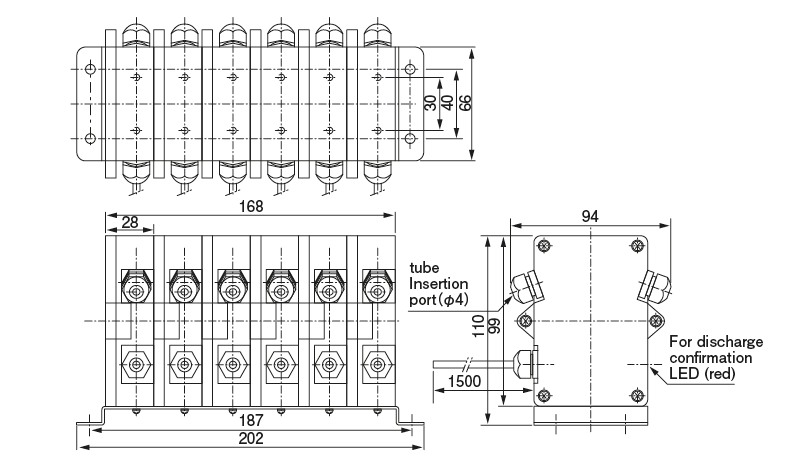

 Dimensional Drawing

Dimensional Drawing

OA- I(Air-Oil Sensor)

 Dimensional Drawing

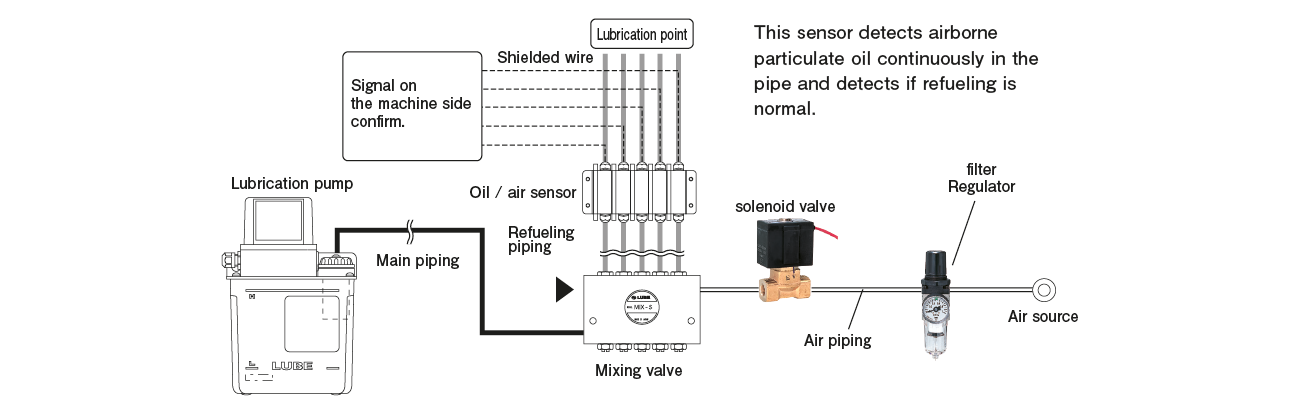

System layout

OA- I(Air-Oil Sensor)

System layout
