Oil lubrication system

Reservoirs

Metal reservoirs 2ℓ

Metal reservoirs 2ℓ

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

Dimensions

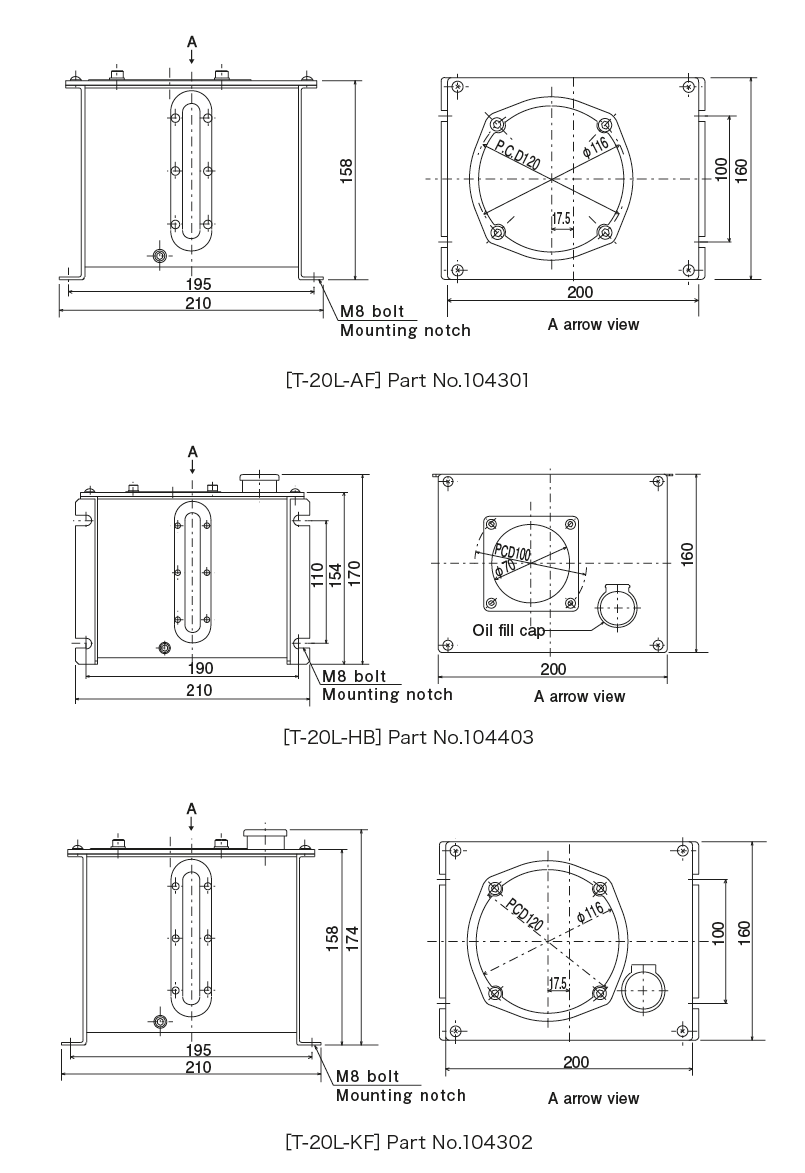

Metal reservoirs2ℓDimensions

Pump Circuit Diagram

ModelApplicable PumpPart NumberReservoir
T-20L-AF ACM-Ⅱ、AM、ADM 104301 Foot
T-20L-AB 104401 Side
T-20L-HF AMI-300S、AMI-300 104303 Foot
T-20L-HB 104403 Side
T-20L-KF AMI-1000S、AMI-1000 104302 Foot
T-20L-KB 104402 Side

● Material :SPCC Total Capacity :3.2ℓ Effective capacity :2.1ℓ Paint Color :Silver

Directions for use

● Do not use solutions.
● Clean once a year.
● Please refer to the instruction manual for details.
