Single Line Resistance Valve (Continuous) Control unit

Single Line Resistance Valve (Continuous) Control unit

Internal Structure

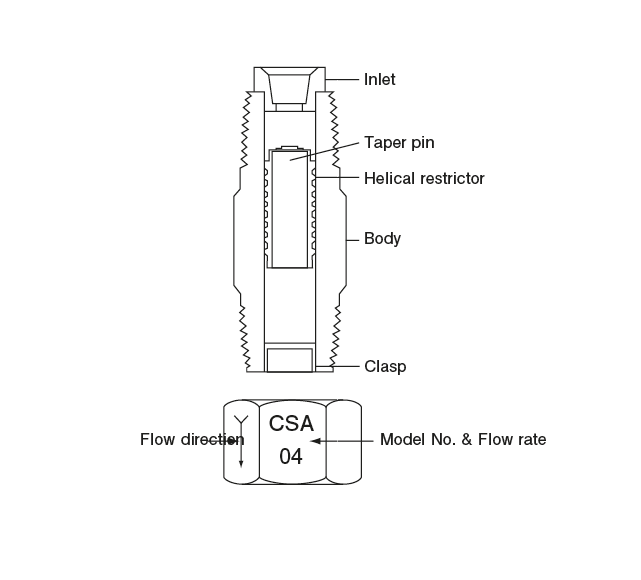

CSA · CJB · CTU Type (control unit)Internal Structure

Specifications

Regular Working Pressure	0.8 MPa or less

Directions for use

● Check the flow directions, screw connection dimensions with the junction.
● Please look at the mounting junction.

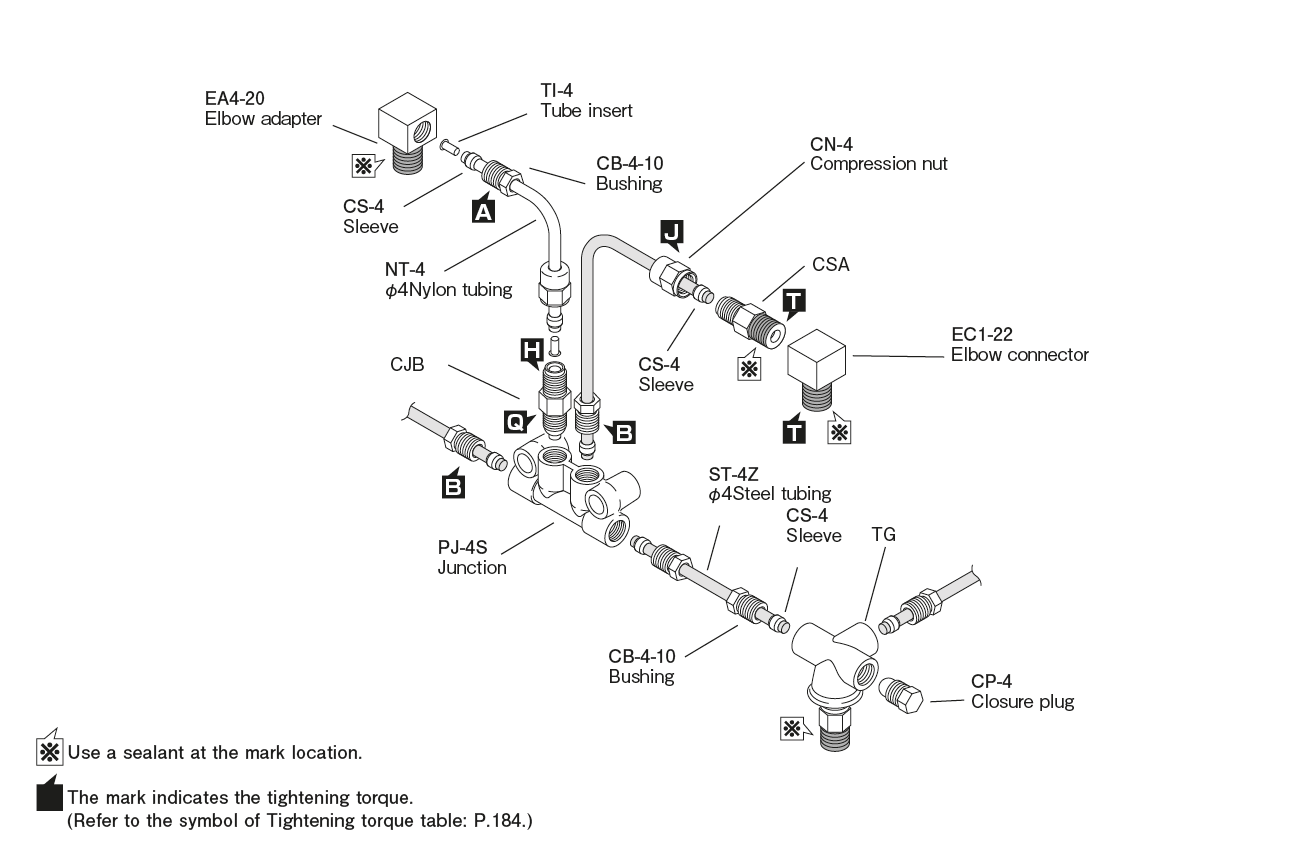

Piping layout diagram (example)

CSA · CJB · CTU Type (control unit)Piping layout diagram (example)

Part Number		Model
Metric Screw	Inch Screw	Model
105201	185201	CSA	05
105202	185202		04
105203	185203		03
105204	185204		02
105205	185205		0
105206	185206		1
105207	185207		2
105208	185208		3
105209	185209		4
105210	185210		5

Dimensional Drawing

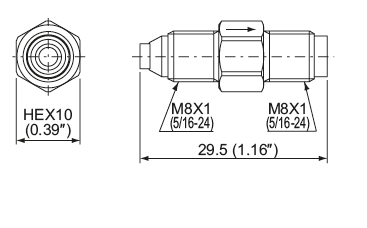

CSA · CJB · CTU Type (control unit)Dimensional Drawing

We also offer products that comply with the RoHS standard.

Part Number		Model
Metric Screw	Inch Screw	Model
105211	185211	CJB	05
105212	185212		04
105213	185213		03
105214	185214		02
105215	185215		0
105216	185216		1
105217	185217		2
105218	185218		3
105219	185219		4
105220	185220		5

Dimensional Drawing

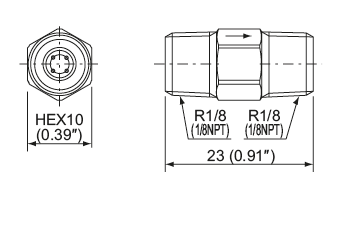

CSA · CJB · CTU Type (control unit)Dimensional Drawing

Part Number		Model
Metric Screw	Inch Screw	Model
105321	185321	CTU	05
105322	185322		04
105323	185323		03
105324	185324		02
105325	185325		0
105326	185326		1
105327	185327		2
105328	185328		3
105329	185329		4
105330	185330		5

Dimensional Drawing

CSA · CJB · CTU Type (control unit)Dimensional Drawing
