Metering valves for LHL system S Series MU

Metering valves for LHL system S Series MU



  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

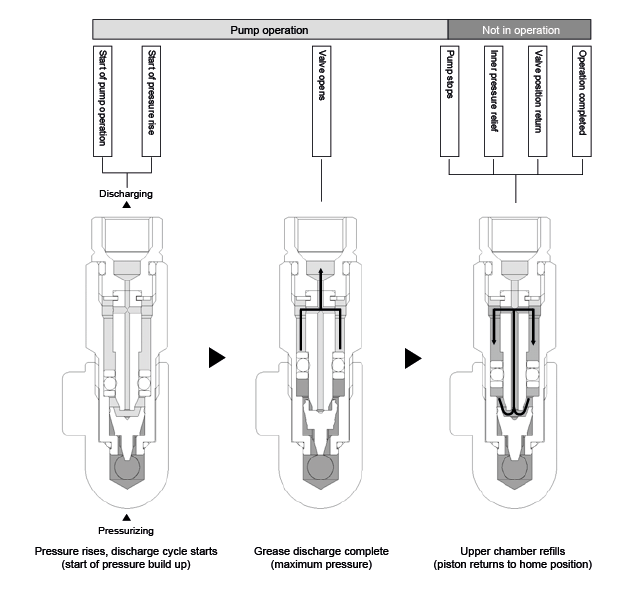

Operating principle

Operating principle
ModelPart NumberDischarge volume
(mℓ)
Connection methodL dimension (mm)Mark
MU-3 205871 0.03 Bushing   3 HEX11
MU-5 205872 0.05 37.4 5
MU-10 205873 0.1 37.4 10
MU-20 205874 0.2 50.4 20
MU-30 205935 0.3 57.8 30
MU-50 205936 0.5 57.8 50
MU-3N 205911 0.03 Nut 41.4 3
MU-5N 205912 0.05 5
MU-10N 205913 0.1 10
MU-20N 205914 0.2 54.4 20
MU-30N 205915 0.3 61.8 30
MU-50N 205916 0.5 61.8 50
MU-3C 205921 0.03 One touch 46.7 3
MU-5C 205922 0.05 5
MU-10C 205923 0.1 10
MU-20C 205924 0.2 59.7 20
MU-30C 205925 0.3 66.1 30
MU-50C 205926 0.5 67.1 50

●(Body):Brass

Specification

Working pressure 1.5 MPa
Return pressure 0.4 MPa

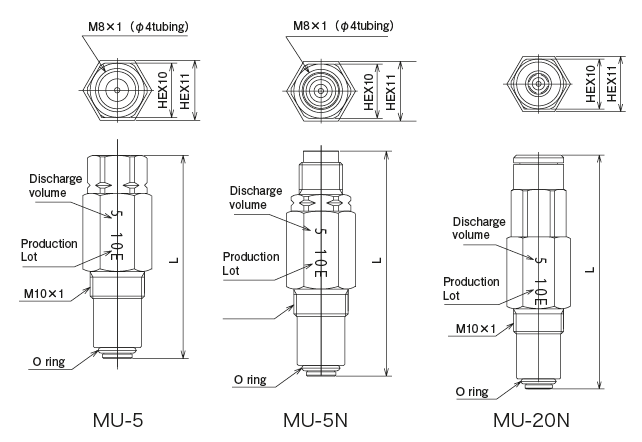

Dimensions

Dimensions
