Junction for MO2 & MO2C valve JVPA

Junction for MO2 & MO2C valve JVPA

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

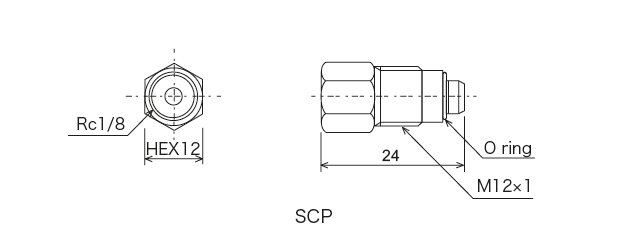

Dimensional Drawing

Dimensional Drawing
ModelPart Number
SCP 619803

●Material: Brass(BS material C3604)

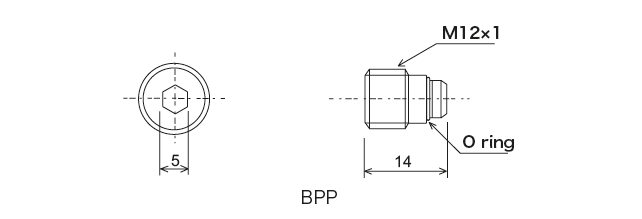

Dimensional Drawing

Dimensional Drawing
ModelPart Number
BPP 619802

●Material:Iron(SUM24)

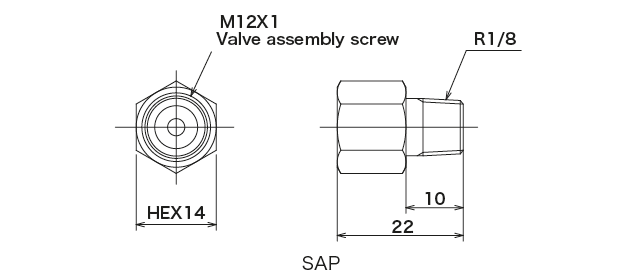

Dimensional Drawing

Dimensional Drawing
ModelPart Number
SAP 611825

●Material: Brass(BS material C3604)

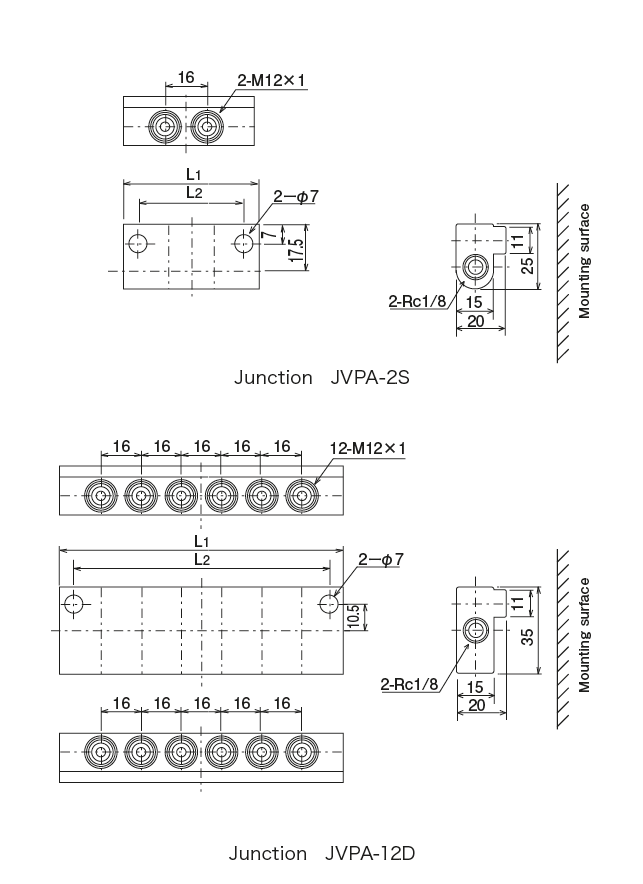

Dimensional Drawing

Dimensional Drawing
ModelPart NumberSpecificationsL1L2
JVPA-1S 216001 for Single type1 ports 33 22
JVPA-2S 216002 for Single type2 ports 49 38
JVPA-3S 216003 for Single type3 ports 65 54
JVPA-4S 216004 for Single type4 ports 81 70
JVPA-5S 216005 for Single type5 ports 97 86
JVPA-6S 216006 for Single type6 ports 113 102
JVPA-7S 216007 for Single type7 ports 129 118
JVPA-8S 216008 for Single type8 ports 145 134
JVPA-9S 216009 for Single type9 ports 161 150
JVPA-10S 216010 for Single type10 ports 177 166
JVPA-11S 216011 for Single type11 ports 193 182
JVPA-12S 216012 for Single type12 ports 209 198
ModelPart NumberSpecificationsL1L2
JVPA-2D 216021 for Double type 2 ports 33 11
JVPA-4D 216022 for Double type 4 ports 49 38
JVPA-6D 216023 for Double type 6 ports 65 54
JVPA-8D 216024 for Double type 8 ports 81 70
JVPA-10D 216025 for Double type 10 ports 97 86
JVPA-12D 216026 for Double type 12 ports 113 102
JVPA-14D 216027 for Double type 14 ports 129 118
JVPA-16D 216028 for Double type 16 ports 145 134

●Material:Aluminum(A6063S-T5)
