Flexible hose For moderate and high pressure

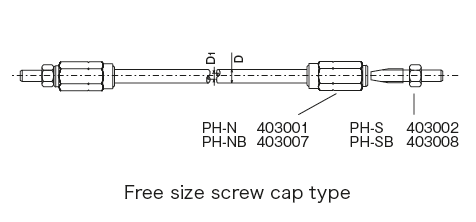

Dimensional Drawing

For high pressure (operating temperature -30 ° C to + 80 ° C)

Model	Part Number	D（φ）	D1（φ）	Fixed size (m)	Working pressure (MPa)	Breaking pressure（MPa）	Minimum bending radius (R)	Material	Color
PH-60	403010	8.3	3.6	100	20	72	15	Polyamide	Black
PH-60B	403020	12.37	6.35	100	20	72	40	Polyamide	Black

Directions for use

● Make sure to use the working pressure, length and bending radius with room.
● Refer to page 162 for recommended fittings.

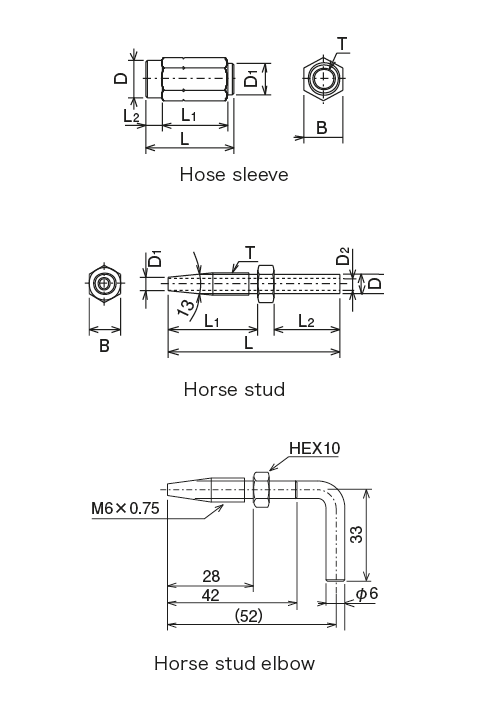

Dimensional Drawing

Hose sleeve

Model	Part Number	T	L	L1	L2	D	D1	B
PH-N	403001	M6×0.75	28	21	5	φ11.7	φ10	12
PH-NB	403007	M9×1.0	37	31	4	φ16.5	φ14	17

●Material：Iron

Horse stud

Model	Part Number	T	L	L1	L2	D	D1	D2	B
PH-S	403002	M6×0.75	54	28	21	φ6	φ3.9	φ4	10
PH-SB	403008	M9×1.0	69	35.5	27	φ8	φ6.2	φ5	14

●Material：Iron

Horse stud elbow

Model	Part Number
PH-SE	403003

●Material：Iron

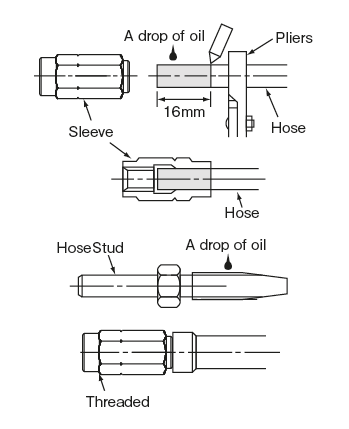

Assembly method（PH-60）

Push the hose sleeve (PH-N) into the cut of the hose and turn it counterclockwise. At this time, work can be done smoothly by applying a small amount of oil to the surface of the hose.
Polyamide hose assembly procedure for high pressure
1. Cut high pressure hose to working dimensions using a Pipe cutter
That the cut end of the hose is right angle
2. Mark the position of 16 mm ± 1 mm (24 mm ± 1 mm in the case of PH-60B) with white magic etc. from the tip of high pressure hose
3. Apply a thin layer of grease to the entire circumference of the high pressure hose tip
Oil can be used instead of grease
4. Push the hose sleeve into the cut end of the hose and screw it in the counterclockwise direction to the mark (16 mm ± 1 mm from the hose tip) attached to the hose while turning the hose sleeve side counterclockwise. (24 mm ± 1 mm for PH-60B)
5. Apply a thin layer of grease to the entire circumference of the thread of the hose stud
Oil can be used instead of grease
6. Fix the hose sleeve and screw the hose stud clockwise until it hits the hex
Tightening torque (indication): 80 to 90 kgf cm
