Piping Parts

General

Tubing LineUp

Tubing LineUp

RoHS基準に対応した製品もご用意しております。詳しくは、お近くの営業所までお問い合せください。

  • Manual browse
  • Catalog PDF viewing
  • DXF drawing data viewing
  • STEP drawing data viewing

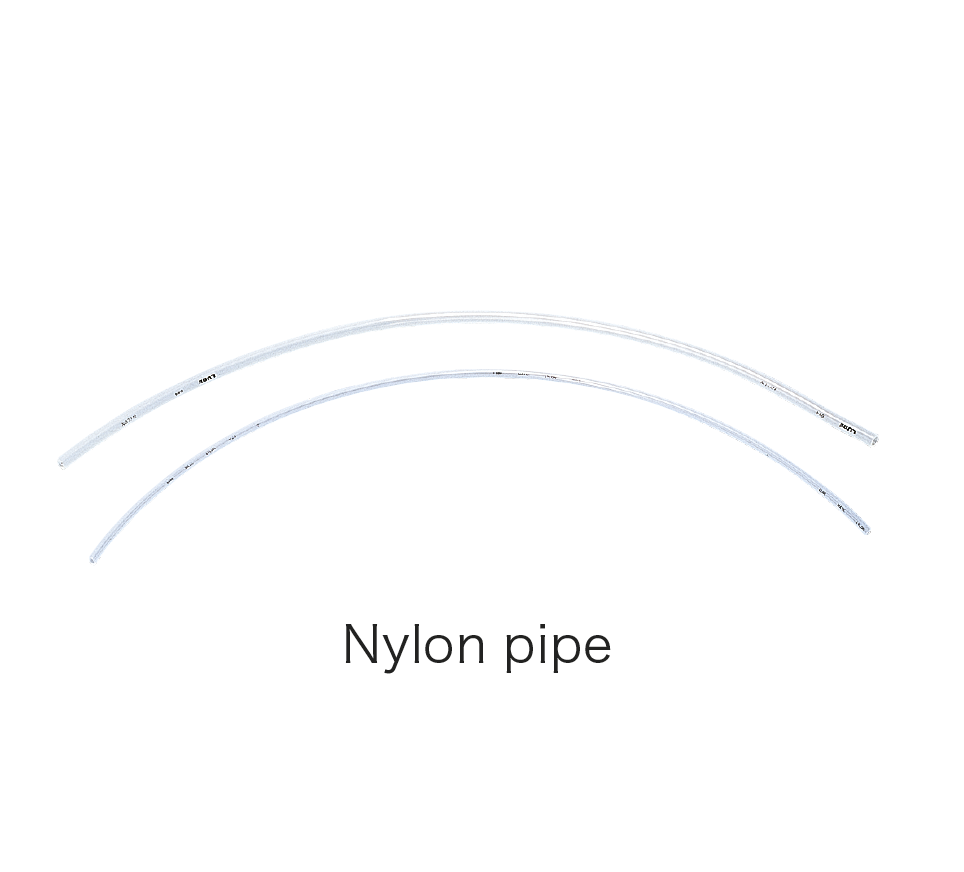

Nylon (Raylon) pipe [not for sale]

ModelPart NumberOuter diameter (φ)Inner Diameter(φ)Fixed size (m)Working pressure (MPa)Breaking pressure (MPa)Working temperature rangeMinimum bending radiusColor
NT-4 106801 4 2.5 100 2.5 9.8 -20 °C~+70 °C  12 Milk White
NT-4H 106806 4.4 17.6 16
NT-6 218005 6 4 2.2 8.6 24
NT-6H 218006 3.7 15.2 27
NT-8 218003 8 6 1.5 6.2 48

●Material:Nylon

We also offer φ4, φ6 fixed size 20m.

Nylon (Raylon) pipe [not for sale]
 Dimensional Drawingなど

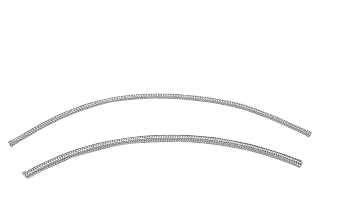

Polyamide Pipe[Not sold]

ModelPart NumberOuter diameter (φ)Inner Diameter(φ)Fixed size (m)Working pressure (MPa)Breaking pressure (MPa)Minimum bending radius (R)Color
PT-6H 403011 6 3 100 7.5 25 50 Black

●Material:polyamide

polyamidePipe[Not sold]
 Dimensional Drawingなど

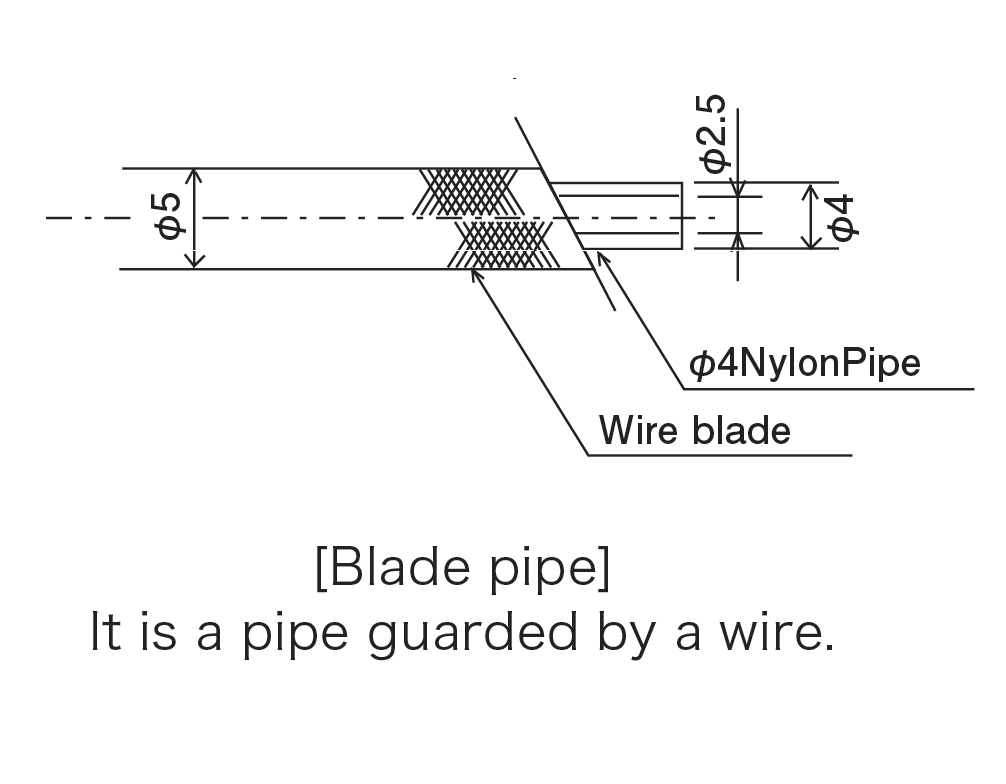

Blade Pipe[Not sold]

ModelPart NumberOuter diameter (φ)Fixed size (m)Working pressure (MPa)Breaking pressure (MPa)Working temperature rangeMinimum bending radiusSurface Treatment
BT-4 106803 5 100 2.5 9.8 -20 °C ~ +70 °C R16 EP-Fe/Zn
BT-6 218007 7 2.2 8.6 R17

Material: Nylon Exterior: Iron SWRM-8 EP-Fe / Zn5

BladePipe[Not sold]
 Dimensional Drawingなど

Aluminum Pipe[Not sold]

ModelPart NumberOuter diameter (φ)Inner Diameter(φ)Fixed size (m)Working pressure (MPa)Tensile Strength(MPa)Growth
(MPa) 106811 4 3 2 1.3 0.6-1 41 %
AT-6 206811 6 4.4 2

● Material: Aluminum Drawing pipe (JIS H4080A1050TD-O)

AluminumPipe[Not sold]
 Dimensional Drawingなど

Copper Tube [Not sold]

ModelPart NumberOuter diameter (φ)Inner Diameter(φ)Fixed size (m)Working pressure (MPa)Tensile Strength(MPa)Growth
CT-4 106821 4 3 5 7 2 40 %
CT-6 218015 6 4.4 8 2.1
CT-8 206823 8 6 6 2.3

Material: Phosphorus-deoxidized copper (JIS H3300C1220T-OL)

※ When ordering, please refer to each scale and specify in meters.

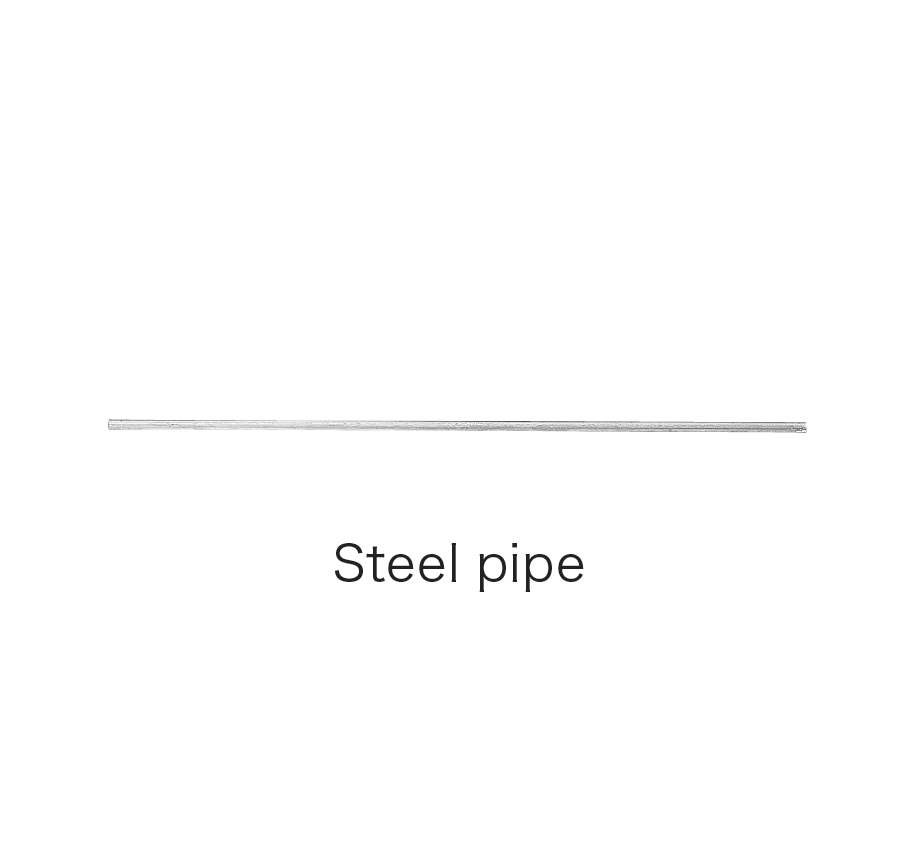

Steel Tube [Not sold]

ModelPart NumberOuter diameter (φ)Inner Diameter(φ)Fixed size (m)Working pressure (MPa)Tensile Strength(MPa)GrowthSurface Treatment
ST- 4Z 218011 4 2.6 2 25 3MPa or more 25 % Ep-Fe/Zn 8/CM
ST- 6Z 218012 6 4.6
ST- 8Z 206836 8 6.6 20
ST-10Z 206837 10 8.6

● Material: (SPCC equivalent) JIS G3141

AluminumPipe[Not sold]
 Dimensional Drawingなど ※ When ordering, please refer to each scale and specify in meters.
